Preconfigured VOPV combiner boxes for organized photovoltaic string protection, surge protection and load-break DC isolation.
Compare system voltage and input/output arrangement, then confirm fuse, surge protection, isolation and enclosure requirements.
01
0203
0405
0607VIOX PV combiner boxes provide a clear integration point between photovoltaic strings and downstream DC equipment. Each project starts with the electrical configuration and installation environment.
Use these values for initial sourcing. Final ratings and order references are confirmed in the approved quotation.
| Reference | Available range | Selection note |
|---|---|---|

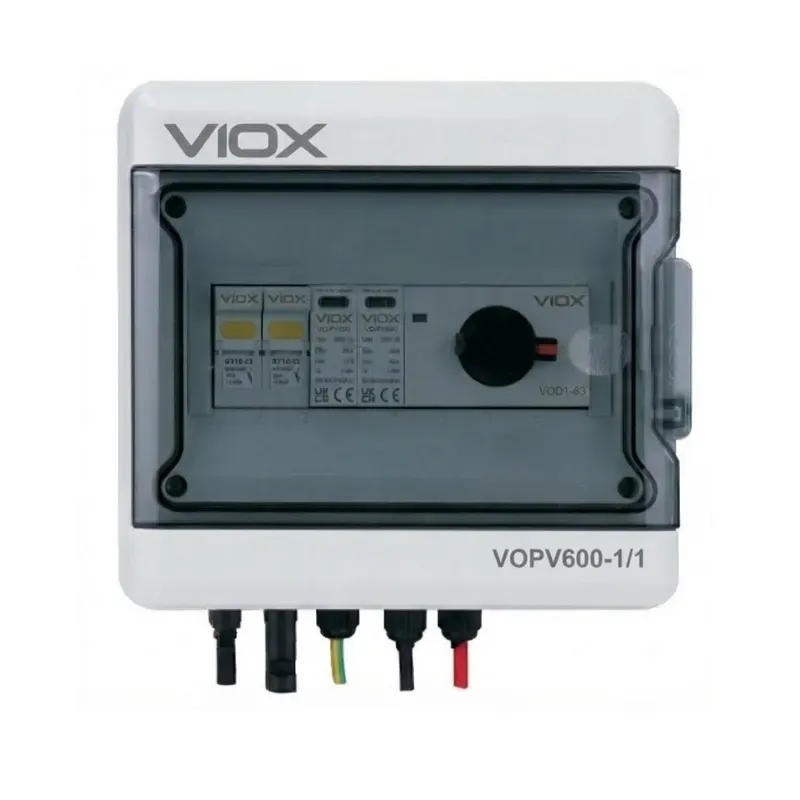

| VOPV600-1/1 | 600 V DC | 1/1 inputs / outputs · 1-input, 1-output 600 V DC solar PV combiner box for protected wall-mounted DC distribution. |

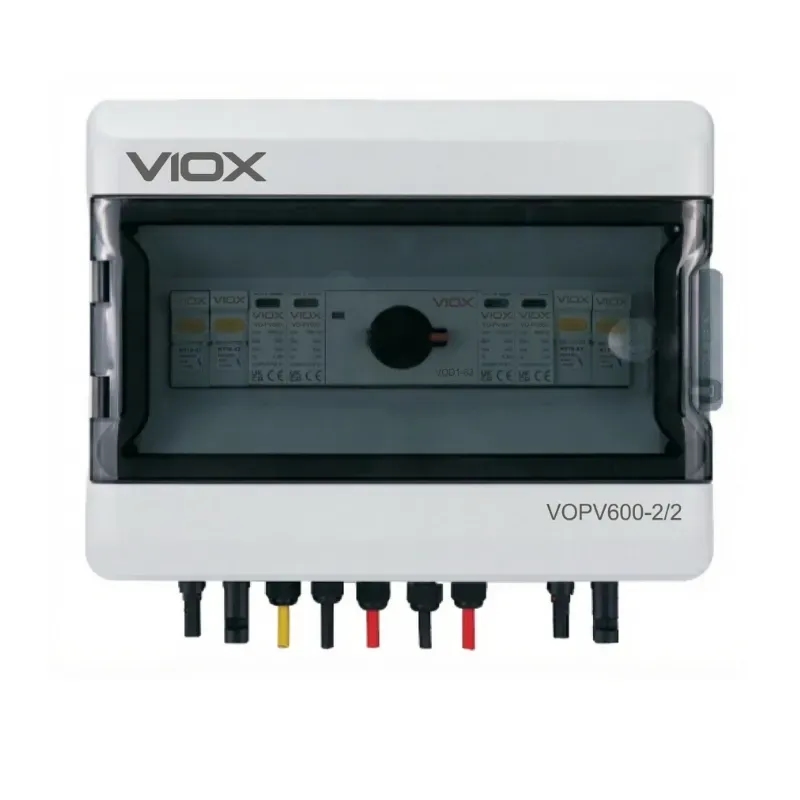

| VOPV600-2/2 | 600 V DC | 2/2 inputs / outputs · 2-input, 2-output 600 V DC solar PV combiner box for protected wall-mounted DC distribution. |

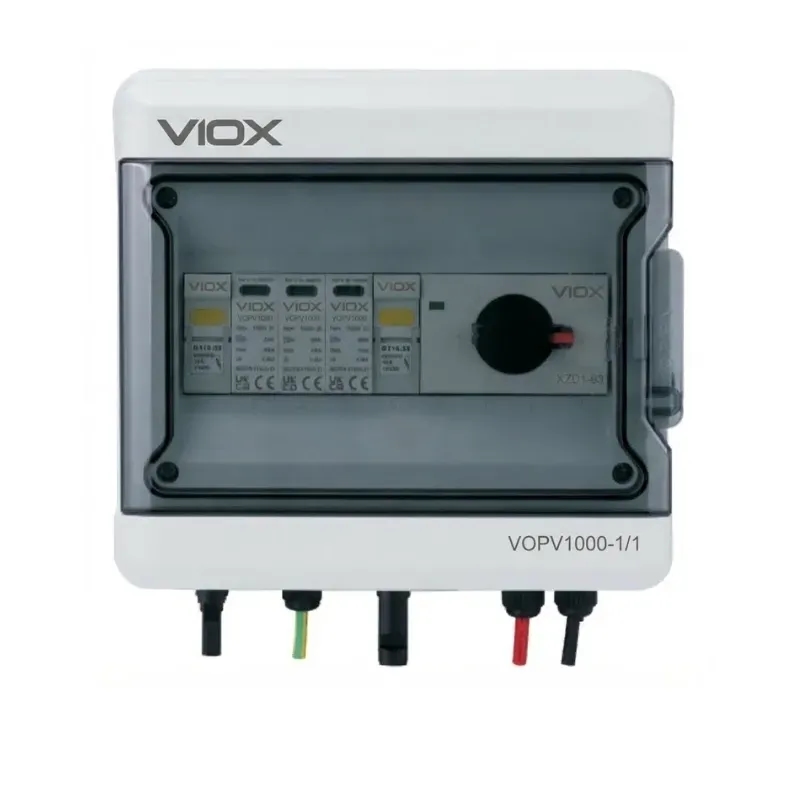

| VOPV1000-1/1 | 1000 V DC | 1/1 inputs / outputs · 1-input, 1-output 1000 V DC solar PV combiner box for protected wall-mounted DC distribution. |
| VOPV1000-2/1 | 1000 V DC | 2/1 inputs / outputs · 2-input, 1-output 1000 V DC solar PV combiner box for protected wall-mounted DC distribution. |

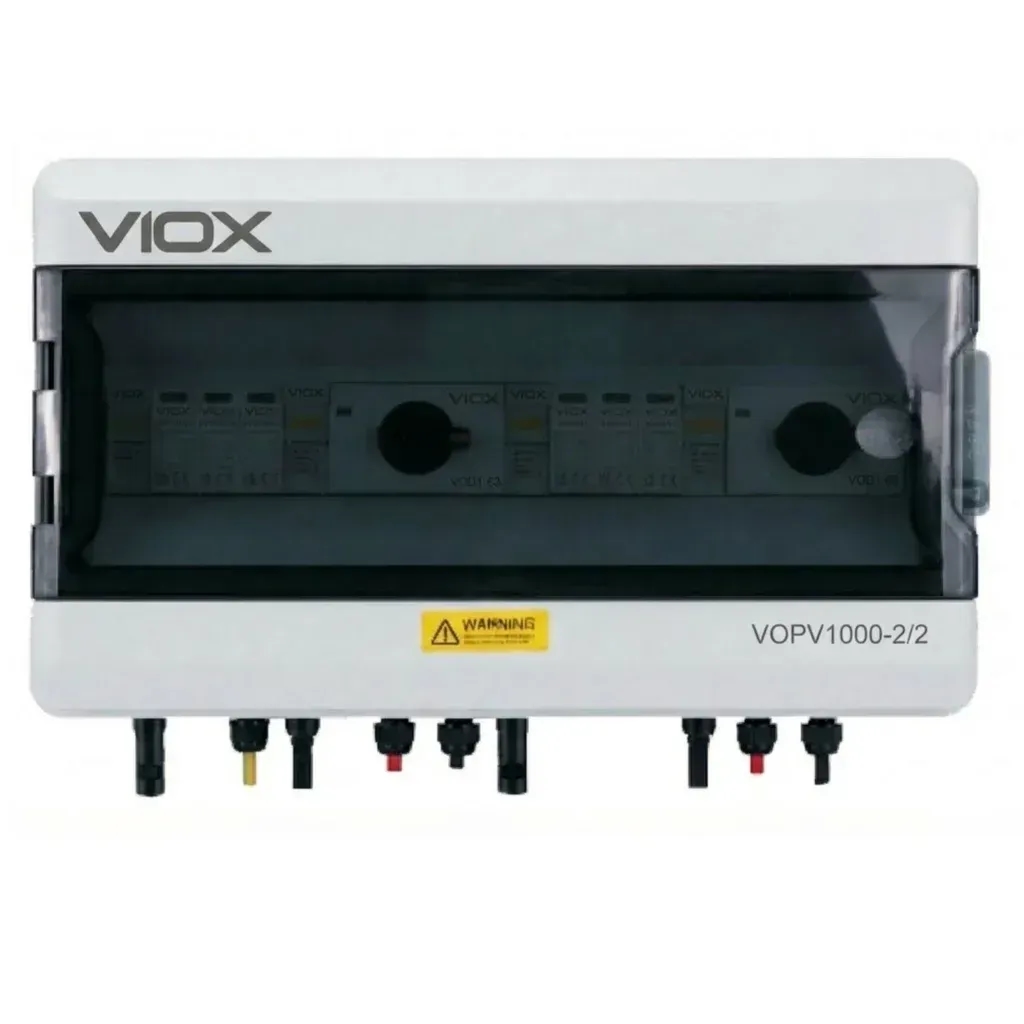

| VOPV1000-2/2 | 1000 V DC | 2/2 inputs / outputs · 2-input, 2-output 1000 V DC solar PV combiner box for protected wall-mounted DC distribution. |
| VOPV1000-3/1 | 1000 V DC | 3/1 inputs / outputs · 3-input, 1-output 1000 V DC solar PV combiner box for protected wall-mounted DC distribution. |

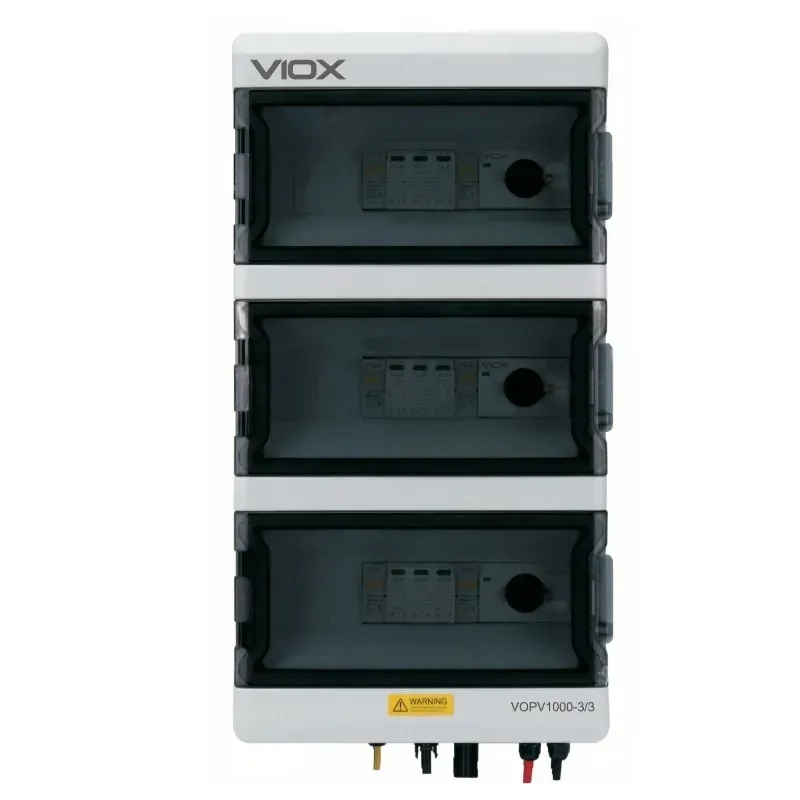

| VOPV1000-3/3 | 1000 V DC | 3/3 inputs / outputs · 3-input, 3-output 1000 V DC solar PV combiner box for protected wall-mounted DC distribution. |
Final suitability should be confirmed against the electrical design, protection study and local requirements.
Organized string collection and DC protection for commercial rooftop photovoltaic arrays.
Defined string combining, protection and isolation for larger field collection architectures.
Project-specific DC collection for distributed generation and multi-array installations.
Enclosure, cable entry and protection options reviewed for the installation environment.
VIOX reviews the electrical architecture and purchasing requirements before the final order code is released.
Electrical ratings, application conditions and product configuration are reviewed before quotation.
The selected reference, available options and controlled documents are aligned to the order.
Private labeling, product marking and packaging requirements can be reviewed for repeat supply.
Confirmed product identity, quantity and documentation move into controlled production and inspection.
Yes. VIOX can review string count, system voltage, protection devices, enclosure, cable entry, labeling and documentation against the project requirements.
Provide the maximum system voltage, number of string inputs and outputs, string current, required fuse or breaker protection, SPD and isolation requirements, enclosure rating and installation environment.
The protection architecture is project defined. Available configurations can include gPV fuses, PV DC surge protective devices and DC isolation or breaker functions.
Yes. OEM labeling, packaging and supporting order documentation can be reviewed during quotation confirmation.
