A PV combiner box is an electrical assembly that receives multiple photovoltaic source circuits and organizes them into one or more output circuits before the inverter or other power-conversion equipment. Depending on the project, it can also provide string overcurrent protection, surge protection, output isolation, monitoring, terminals, and a protected enclosure.
The word “combiner” describes its basic circuit role. It does not mean every combiner box contains the same devices—or that every PV system needs a separate box.
Where a PV combiner box sits in the system
A simplified string-inverter path may be shown as:
PV modules → PV string → combiner box → inverter DC input → AC system
Several strings enter the box on separate input circuits. Inside the assembly, conductors are terminated and arranged according to the approved single-line diagram. One or more output circuits then continue toward the inverter.

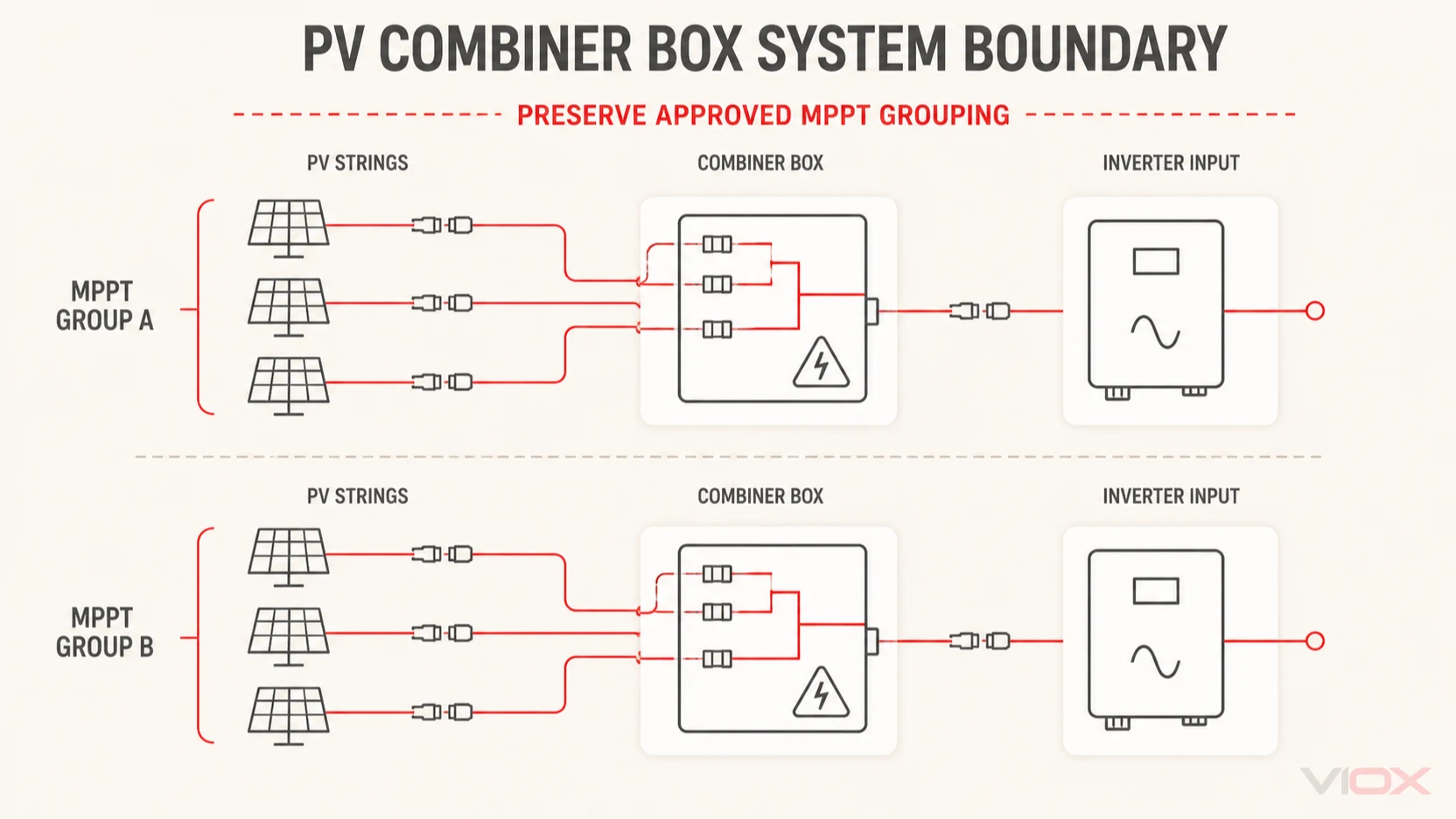

This boundary is important. Strings assigned to different maximum power point tracker (MPPT) inputs should not be combined merely to reduce the number of cables. The box must preserve the electrical grouping required by the inverter design.
Modern inverters sometimes accept individual string inputs and incorporate functions that once required an external combiner. In those systems, a separate box may be unnecessary or may serve only a limited collection, protection, or transition role.
What does a solar combiner box do?
1. Organizes PV source circuits
The box provides defined entries, terminals, circuit identification, and output routing. This can simplify cable collection between an array area and the inverter, especially where multiple strings share the same approved electrical group.
2. Provides string overcurrent protection when required
Parallel strings can feed current back into a faulted string. Where the design rules and module limits require overcurrent protection, a box may contain PV DC fuse links and holders or another documented DC protection arrangement.
Protection is not selected from string count alone. The designer must evaluate possible reverse current, module maximum series-fuse rating, conductor limits, temperature, fault contribution, and the applicable installation rules.
3. Limits transient overvoltage
A combiner box can contain a PV DC surge protective device. The SPD is chosen for the PV DC circuit and the project's surge-protection concept, including its maximum continuous operating voltage, type, protection modes, discharge-current capability, voltage protection level, backup protection, and earthing path.
An SPD does not protect against sustained overload or short circuit in the same way as a fuse or breaker.
4. Creates a switching or isolation point
An output DC isolator switch or a suitably documented DC circuit breaker may provide a local switching point. The required function must be stated clearly: load switching, maintenance isolation, overcurrent protection, or a combination supported by the device ratings.
5. Supports monitoring and maintenance
Larger or project-specific assemblies may include string-current monitoring, auxiliary contacts, SPD remote indication, communications, or other status functions. These features can improve visibility, but they do not replace commissioning measurements or a maintenance plan.

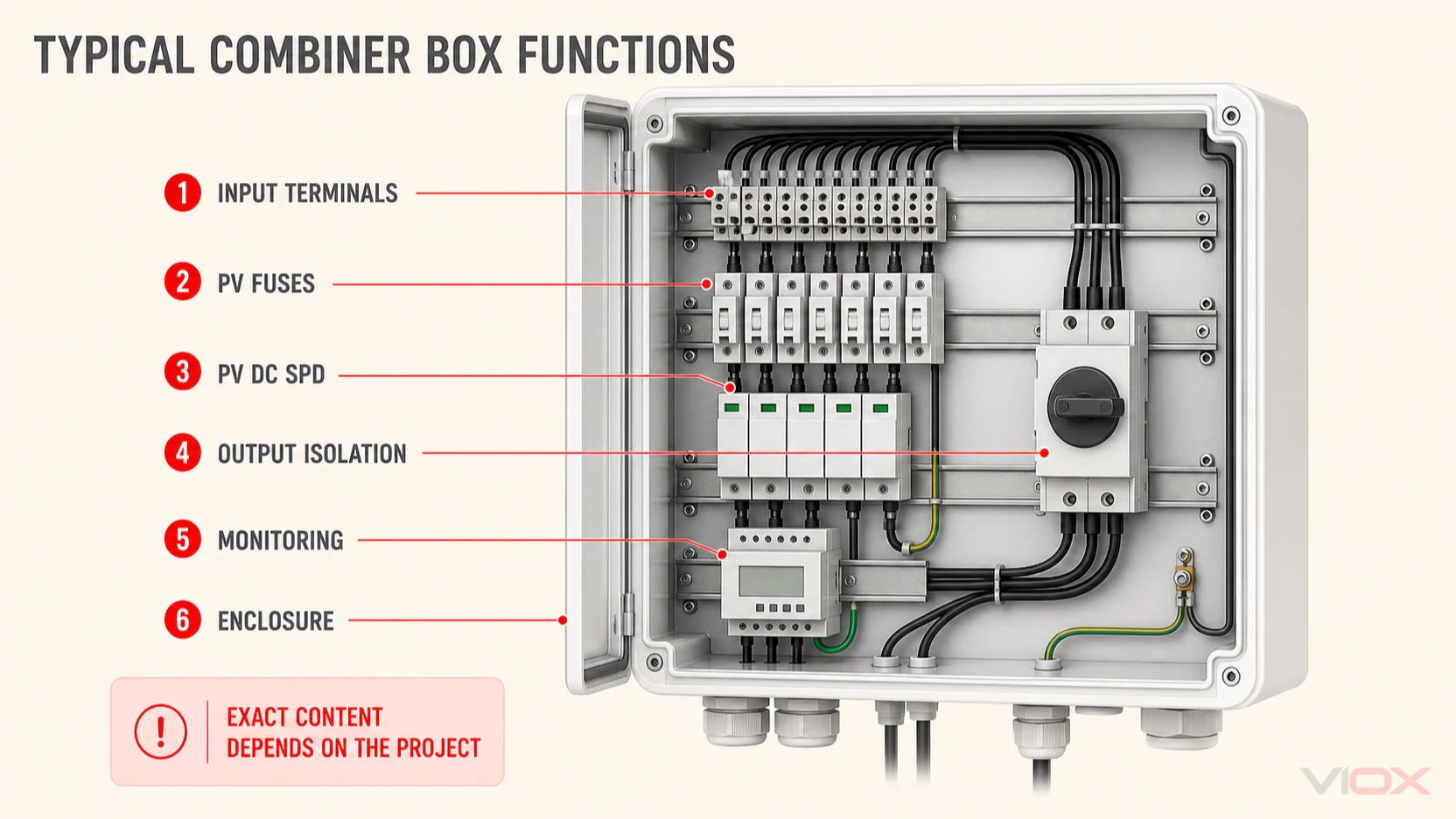

Typical components inside a PV combiner box
| Component | Possible purpose | What must be project-defined |
|---|---|---|
| Input terminals or connectors | Receive string circuits | Quantity, conductor range, polarity, temperature, compatibility |
| PV fuse links and holders | String overcurrent protection | Need, rating, class, breaking capacity, coordination, temperature |
| Busbars or distribution conductors | Combine current | Current, material, insulation, spacing, thermal performance |
| PV DC SPD | Limit transient overvoltage | Type, Ucpv, modes, discharge ratings, Up, backup protection |
| Switch-disconnector or DC breaker | Output switching/isolation and possibly protection | Voltage, current, poles, utilization category, breaking capacity, function |
| Monitoring module | Measure or signal circuit status | Channels, accuracy, supply, protocol, alarms |
| Earthing/PE terminal | Provide protective and SPD connection points | Conductor arrangement and installation design |
| Enclosure and cable glands | Protect and organize the assembly | Ingress, UV, corrosion, impact, temperature, condensation, cable sizes |
“Fully equipped” is not a technical specification. A useful purchase description identifies the required function and rating of each part.
Combiner box, junction box, and inverter: what is the difference?
PV combiner box versus a junction box
A junction box is a broad term for an enclosure containing electrical connections. A PV combiner box is defined by its array-circuit role: accepting multiple PV source circuits and arranging them into output circuits, often with protection or isolation functions.
PV combiner box versus an inverter
The inverter converts DC power into AC power. A combiner box does not perform that conversion. It sits on the DC collection side and may prepare, protect, isolate, or monitor circuits before they reach the inverter.
PV combiner box versus a rapid-shutdown device
A rapid shutdown device performs a market-specific shutdown function. A combiner box may interact with such an architecture, but ordinary output isolation at a combiner does not automatically satisfy rapid-shutdown requirements.
When is a separate PV combiner box useful?
A separate combiner is often evaluated when:
- Multiple strings need to be collected into defined output circuits
- String overcurrent protection is required outside the inverter
- The surge-protection concept places an SPD near the array collection point
- A local switching or isolation point is required
- Long cable routes benefit from structured collection and circuit identification
- String monitoring or remote status is specified
- A project needs a controlled transition between field cables and outgoing feeders
It may not be needed when an inverter already accepts the strings individually and provides the required project functions, or when the array architecture has too few strings to justify an external assembly. The decision should follow the single-line diagram, inverter instructions, and applicable rules.
Common combiner-box arrangements
The input/output notation commonly used in model names can describe physical circuit arrangements, but it should not be confused with a complete electrical specification.
- 1-in/1-out: A protected or isolated transition for one source circuit
- 2-in/1-out: Two compatible input circuits combined into one output
- 2-in/2-out: Two input circuits remain as two controlled output circuits
- 3-in/1-out or 3-in/3-out: Three inputs are combined or retained as independent outputs according to the design
- Higher string-count assemblies: Multiple strings grouped into one or more outputs, often with string fusing and optional monitoring
Before choosing any arrangement, confirm which strings belong to each inverter MPPT and whether the current and protection design permits them to share an output.
The VIOX PV combiner box range includes 600 V and 1000 V product configurations with several small input/output arrangements. These are product-family options, not a substitute for project-specific voltage, current, protection, and environmental checks.
How to tell whether a specification is complete
A useful combiner-box specification answers all of the following:
- How many strings enter, and how are they assigned to MPPTs?
- What is the corrected maximum DC voltage?
- What are string Isc, operating current, and possible reverse current?
- Is string overcurrent protection required, and how is it coordinated?
- What output current and number of output circuits are required?
- What surge-protection type and ratings follow from the project design?
- Is output isolation, load switching, or breaker protection required?
- What enclosure, ambient, UV, corrosion, condensation, and cable-entry conditions apply?
- Is monitoring or remote indication needed?
- Which drawings, test records, certificates, and labels are required for the destination market?
If these inputs are not yet known, use the PV combiner box selection guide to build a quote-ready schedule. For the wider protection architecture, read How to Select Circuit Protection for a Solar DC System.
Standards and compliance boundaries
No single standard reference proves every aspect of a combiner-box project. Separate layers can apply to:
- PV-array design and installation
- Low-voltage assembly construction
- Individual fuse, breaker, switch, and SPD products
- Enclosure and ingress performance
- Destination-market certification and inspection
IEC 62548-1 addresses PV array design requirements, including DC wiring, electrical protection devices, switching, and earthing provisions. Product-specific standards may then apply to fuses, circuit breakers, switches, and PV SPDs. The exact editions, local adoption, assembly requirements, and certification scheme must be stated in the project specification.
A certificate or standard logo should be matched to the exact manufacturer, model, rating, and scope. Generic component certificates do not automatically certify a completed assembly.
Frequently asked questions
Does every solar system need a combiner box?
No. The need depends on string count, inverter input architecture, required protection and isolation functions, cable layout, monitoring, and local rules.
Is a combiner box the same as a DC distribution box?
The terms can overlap in practice, but “PV combiner box” specifically describes the collection of PV source circuits. Always define inputs, outputs, and functions rather than relying on the label.
Does a combiner box increase power?
No. It organizes circuits and may provide protection, switching, surge limitation, or monitoring. It does not create electrical energy.
Can strings connected to different MPPTs share one combiner output?
They generally should not be combined across MPPT boundaries unless the inverter and system design explicitly provide for that arrangement. Follow the approved single-line diagram and inverter requirements.
Can I select a combiner box only by voltage and string count?
No. Current, reverse-current exposure, output arrangement, device ratings, enclosure conditions, monitoring, cable entries, standards, and documentation also matter.
Next step
For a project-specific review, send the module and inverter datasheets, string schedule, single-line diagram, corrected maximum voltage, current analysis, installation environment, and destination market to sales@vioxsolar.com.
