There is no single component certificate that establishes compliance for a complete photovoltaic (PV) combiner box. A defensible compliance package normally has four layers: the assembled switchgear enclosure, the PV-array application, the standards for each incorporated protective device, and the destination market's project requirements. The correct question is therefore not “Which one standard applies?” but “Which requirement applies to each layer, and what evidence proves it?”
This guide provides that scope map. It does not declare that every standard below applies to every project, and it does not claim certification for a particular VIOX product. The contract, national adoption, equipment architecture, rated values, and authority requirements determine the final list.

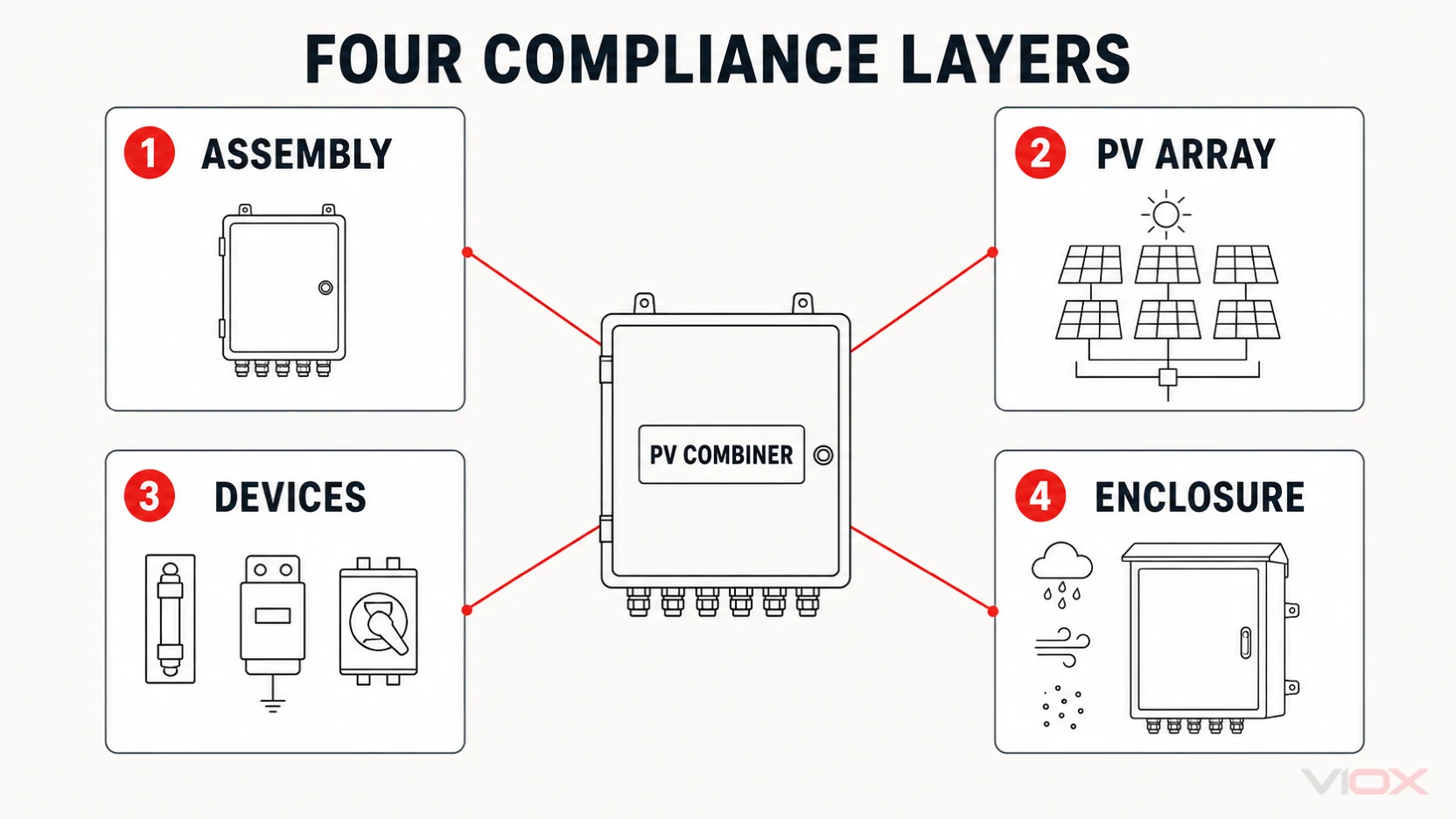

The four compliance layers
A combiner box is both an assembly and part of a PV array. Its fuse-links, surge protective devices (SPDs), breakers or switch-disconnectors may each have their own product standards, while the enclosure and completed assembly require separate evidence.
| Compliance layer | Main question | Typical evidence | What it does not prove by itself |
|---|---|---|---|
| Complete assembly | Was the finished combiner designed and verified as an assembly for its declared ratings and service conditions? | Assembly standard declaration, design-verification evidence, routine-verification record, rating label, drawings | That every installation decision is correct for the project |
| PV-array application | Does the architecture satisfy the array's wiring, protection, switching, and earthing requirements? | Approved single-line diagram, array calculations, project specification, installation design review | Product certification of the assembled combiner |
| Incorporated devices | Are fuse-links, SPDs, breakers, and switch-disconnectors suitable for their assigned functions and DC conditions? | Exact datasheets, certificates where required, coordination records, device markings | Compliance of the complete enclosure or assembly |
| Enclosure and environment | Does the enclosure protect against the declared ingress and service conditions? | IP evidence, enclosure documentation, material and environmental data, thermal assessment | Universal outdoor suitability, corrosion resistance, UV life, or condensation control |
The distinction matters in procurement. A certified fuse-link inside an enclosure does not automatically validate conductor sizing, temperature rise, clearances, terminals, protective bonding, short-circuit withstand, or the finished assembly's declared ratings.
IEC standards scope crosswalk
The following table is a planning crosswalk based on the official IEC publication scopes. Confirm the adopted edition and any national deviations in the destination market before putting a dated standard into a purchase order.
| Standard | Relevant scope for a PV combiner box | Evidence to request | Important boundary |
|---|---|---|---|
| IEC 61439-1:2020 with IEC 61439-2:2020 | General rules and specific requirements for power switchgear and controlgear assemblies up to 1,500 V DC; Part 2 includes photovoltaic-installation annexes | Declared assembly ratings, applicable design-verification evidence, routine-verification record, drawings, bill of materials | Part 1 is used with the relevant assembly part; a component certificate is not an assembly verification |
| IEC 62548-1:2023 | PV-array design requirements, including DC array wiring, electrical protection, switching, and earthing provisions | Approved array design inputs, string and MPPT arrangement, protection concept, switching and earthing decisions | It is an array-design standard, not a product certificate for the combiner assembly |
| IEC 60269-6 | Supplementary requirements for fuse-links protecting PV strings and arrays in circuits up to 1,500 V DC | Exact fuse-link class, rated values, time-current data, breaking-capacity evidence, holder coordination | It covers PV fuse-links; it does not validate the complete box, holder installation, or conductor system |
| IEC 61643-31:2018 | Requirements and test methods for SPDs connected to the DC side of PV installations up to 1,500 V DC | Exact SPD datasheet, declared ratings, test or certification evidence where specified, backup-protection conditions | It addresses the SPD product; it does not complete the project's SPD selection or placement decision |
| IEC 61643-32:2017 | Selection, installation, and coordination principles for SPDs in PV systems | Risk and location basis, Ucpv and protection-level selection, connection-mode and coordination record | Application guidance does not itself certify the SPD or the finished assembly |
| IEC 60947-2:2024 | Circuit-breakers for circuits up to 1,500 V DC within the standard's scope | Exact breaker ratings, breaking capacity, isolation suitability when required, pole and polarity documentation | A breaker cannot be treated as a switch-disconnector or PV string protector without documented suitability |
| IEC 60947-3:2020 | Switches, disconnectors, switch-disconnectors, and fuse-combination units up to 1,500 V DC | Utilization category, rated operational voltage and current, isolation documentation, conditional short-circuit conditions | A disconnector's isolation function is not the same as overcurrent protection |
| IEC 60529 | Classification of ingress protection provided by enclosures | Declared IP code and the supporting test or enclosure evidence | IP classification does not alone prove UV, corrosion, condensation, chemical, or thermal suitability |
| IEC 62208:2023 | General requirements and tests for empty enclosures used as part of switchgear and controlgear assemblies | Enclosure construction and test documentation appropriate to indoor or outdoor use | Empty-enclosure evidence does not replace verification of the populated assembly |
The standards serve different evidence objects. IEC 61439 addresses the completed assembly framework; IEC 62548-1 addresses the PV-array design context; the IEC 60269, 61643, and 60947 series address incorporated devices; IEC 60529 and IEC 62208 support enclosure claims.
What assembly verification should establish
For a combiner treated as a low-voltage power switchgear and controlgear assembly, the supplier's file should connect the declared configuration to the applicable assembly requirements. The exact verification route depends on the standard and design, but the record should be traceable to the supplied product rather than to a generic catalogue image.
The evidence package should identify at least:
- the assembly manufacturer and exact configuration;
- rated operational voltage, current, and other declared assembly characteristics;
- applicable service conditions and enclosure arrangement;
- incorporated-device identities and their coordination conditions;
- conductor, terminal, protective-bonding, and insulation arrangements;
- the basis used for temperature-rise and short-circuit-related verification where applicable;
- design-verification evidence applicable to the configuration;
- routine-verification results for the manufactured unit;
- markings, drawings, and document revisions delivered with the product.
This is why replacing one fuse, SPD, switch, terminal, enclosure, or conductor with an apparently similar part can require an engineering review. The substitution may change a characteristic that was part of the verified assembly design.
Component conformity is not assembly conformity

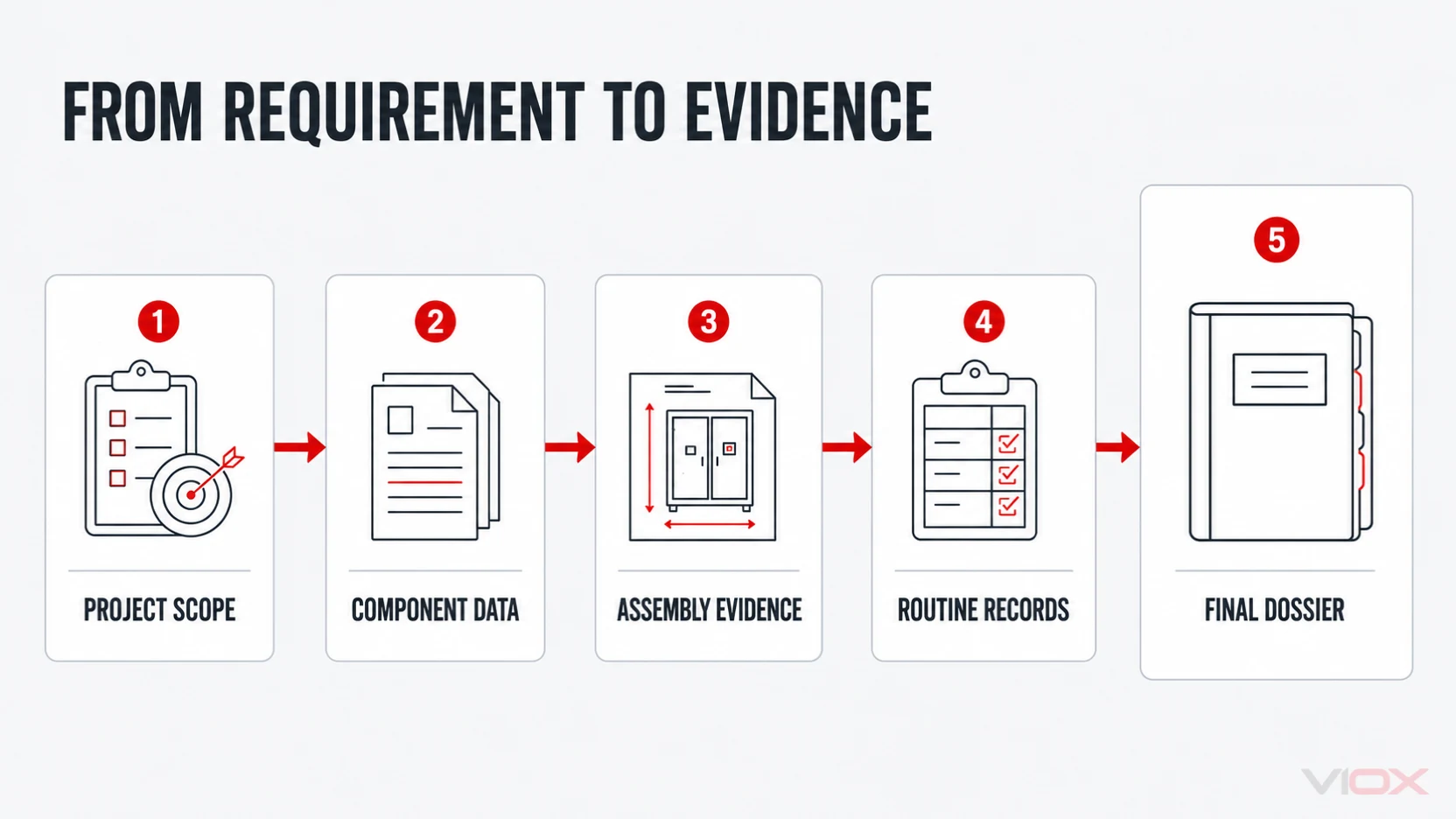

Procurement files often contain several valid component documents but no clear statement about the completed combiner. Keep the evidence chain explicit:
- The project specification defines the destination market, electrical architecture, service conditions, and required deliverables.
- The component documents establish the characteristics and conformity evidence of the exact incorporated devices.
- The assembly record explains how those devices are integrated and how the finished design addresses the relevant assembly requirements.
- Routine records identify checks performed on the manufactured unit.
- The final dossier ties markings, drawings, bill of materials, certificates, and revisions to the delivered configuration.
For example, PV fuse-link requirements and DC breaker requirements describe different protective-device evidence. Neither device family alone proves the suitability of the complete combiner.
Supplier document package
An RFQ should ask for controlled, configuration-specific evidence instead of a broad request for “all certificates.” The following matrix is a practical starting point.
| Document or record | What it should identify | Why it matters | Review point |
|---|---|---|---|
| Compliance matrix | Each contractual requirement, applicable standard, edition, and evidence reference | Prevents standards from being listed without a matching deliverable | Confirm national adoption and exclusions |
| General arrangement and single-line diagram | Inputs, outputs, protective devices, switching, terminals, earthing, and cable entries | Connects the electrical function to the physical assembly | Match the approved project architecture |
| Bill of materials | Exact manufacturer and model of safety-relevant components | Makes component evidence traceable and controls substitutions | Require revision and change-control status |
| Component evidence | Datasheets and required certificates for fuse-links, holders, SPDs, switches, breakers, terminals, and enclosure | Confirms the assigned product characteristics | Check ratings, DC suitability, and conditions of use |
| Assembly design-verification file | Evidence applicable to the declared assembly design and configuration | Supports the completed assembly claim | Check configuration and rating boundaries |
| Routine-verification record | Unit-specific inspection and verification results | Shows the manufactured unit was checked before release | Tie the record to serial or batch identity |
| Rating label and marking schedule | Declared ratings, identification, warnings, and circuit labels | Allows the delivered product to be matched to its dossier | Compare against drawings and quotation |
| Installation and maintenance information | Permitted conditions, handling, inspection, replacement, and service boundaries | Preserves the assumptions behind the product and assembly evidence | Use only controlled manufacturer instructions |
The list is intentionally evidence-focused. Final device selection still begins with corrected array voltage, current, parallel-source behavior, MPPT grouping, prospective fault conditions, and environmental inputs. Those decisions belong in the PV combiner box selection workflow, not in a standards title.
How to state the requirement in an RFQ
A clear compliance clause should be specific enough to review but flexible enough to reflect the destination market. Include these elements:
- Market and authority basis: destination country, required national adoption, certification scheme, authority having jurisdiction, and contract edition.
- Assembly boundary: input and output arrangement, system voltage, current duties, earthing concept, enclosure location, and service conditions.
- Applicable standards: the assembly, array-design, component, and enclosure standards that actually correspond to the architecture.
- Evidence deliverables: compliance matrix, exact component documents, drawings, bill of materials, design-verification evidence, routine records, and markings.
- Deviation process: a written method for declaring exclusions, alternative standards, substitutions, and evidence limitations before production.
Avoid clauses such as “IEC compliant” without a standard number, edition, scope, and deliverable. Also avoid requiring every standard found in a generic list: an irrelevant requirement adds paperwork without improving technical assurance.
Common compliance interpretation errors
Treating an IP rating as complete outdoor suitability
An IP code classifies protection against defined access and ingress conditions. Outdoor suitability may also depend on UV exposure, corrosion, condensation, temperature, mounting, drainage, seals, cable glands, and maintenance. Record these separately.
Using a device certificate as evidence for the finished box
Device evidence remains important, but the assembly introduces terminals, conductors, heat sources, spacing, protective bonding, enclosure effects, and coordination conditions. Request both component and assembly evidence.
Omitting editions and national adoption
Standards change, and national or contractual requirements may adopt a particular edition with modifications. Record the edition at the project level and confirm it before ordering—not by copying a date from an unrelated certificate.
Assuming one architecture fits every market
PV-array protection, switching, earthing, surge protection, and certification rules depend on the system and jurisdiction. Keep IEC product and design scopes separate from national installation rules and approval schemes.
Accepting an untraceable document bundle
A certificate or test record has limited procurement value when it cannot be tied to the exact model, bill of materials, rating, revision, or supplied configuration. Traceability is part of the evidence review.
Applying the crosswalk to a VIOX project
The VIOX PV combiner box family provides a starting route for configured photovoltaic combining, protection, surge protection, and DC isolation. The controlled datasheet and approved quotation define the supplied product; this article does not replace those documents or declare a certification scope.
Before requesting a quotation, prepare the target market, approved single-line diagram, corrected string voltage, string and MPPT arrangement, environmental conditions, required standards and editions, and evidence-delivery list. For system context, start with what a PV combiner box does and the broader solar DC protection workflow.
Send the project inputs and document requirements to sales@vioxsolar.com for a configuration-specific review.
