Straight and multi-branch photovoltaic connectors for reliable module, string and field cable connections.
Compare voltage rating and branch arrangement, then confirm cable size, current, tooling and documentation.
0102
03
04
05VIOX MC4-type solar connectors support efficient photovoltaic field wiring where repeatable assembly and dependable contact are essential.
Use these values for initial sourcing. Final ratings and order references are confirmed in the approved quotation.
| Reference | Available range | Selection note |
|---|---|---|

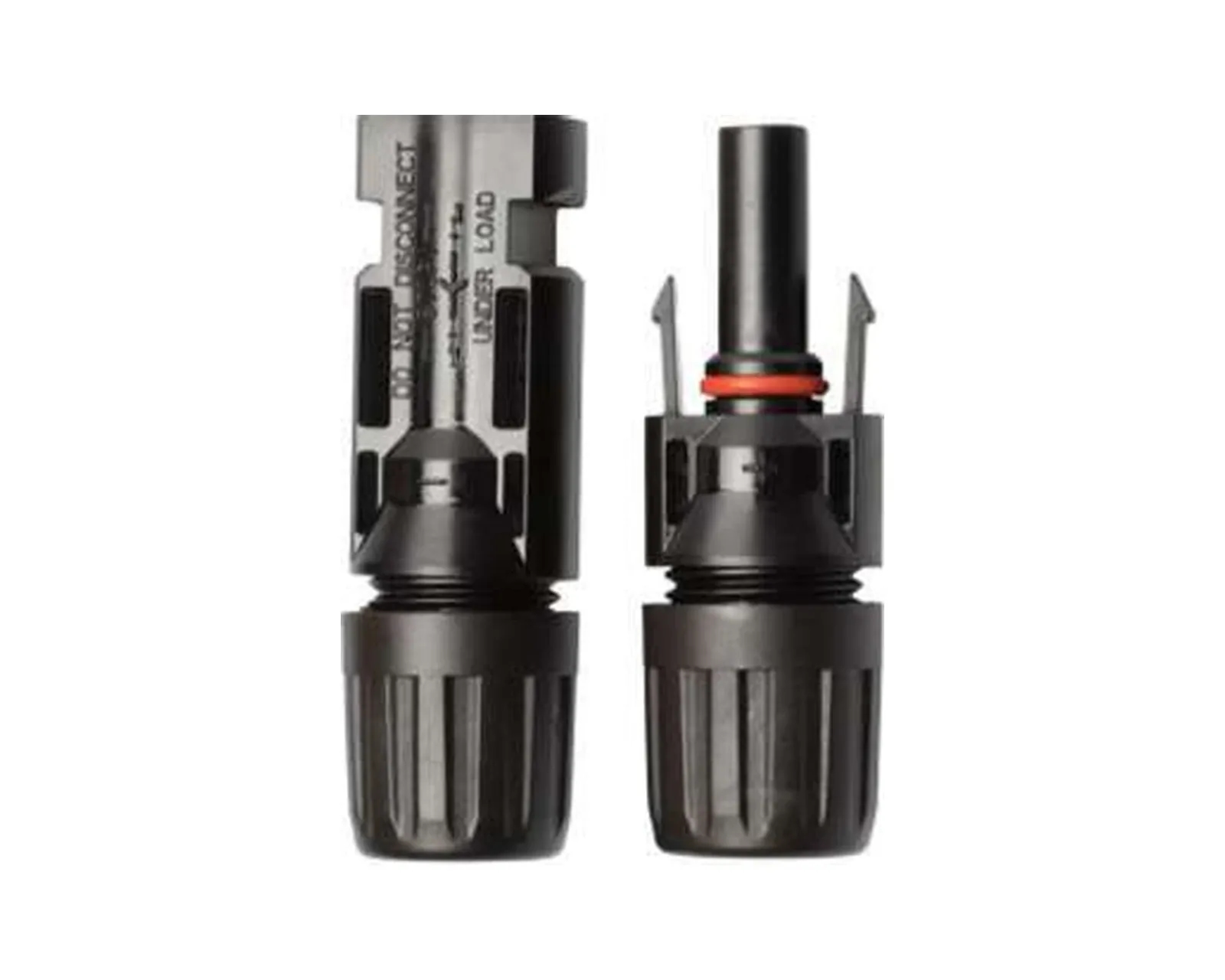

| PV-MC straight connectors | 1000V DC or 1500V DC; up to 30A | Male and female straight cable connector pair. |

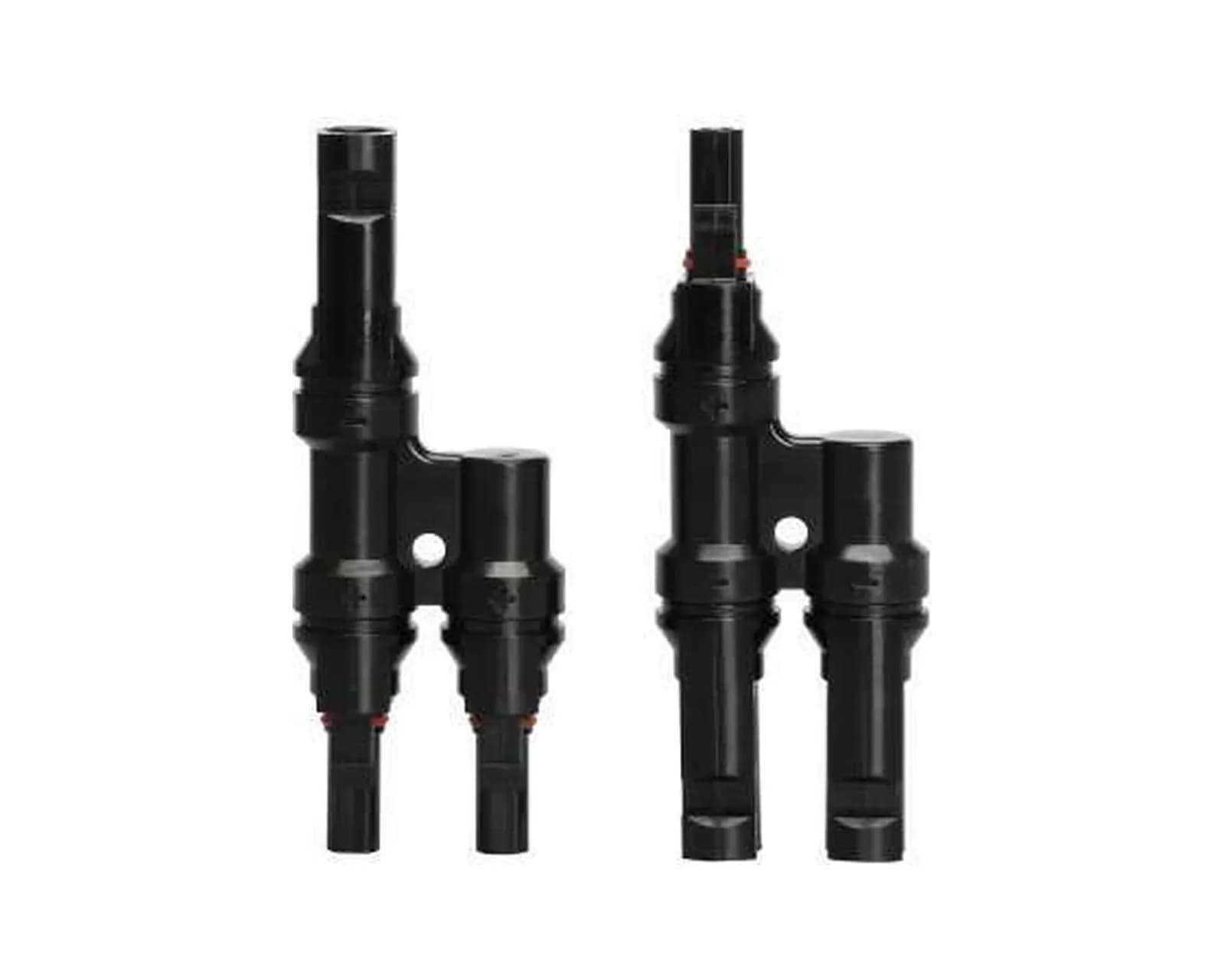

| PV-T2 | 2-way branch; 30A | 1000V TÜV / 600V UL catalog rating. |

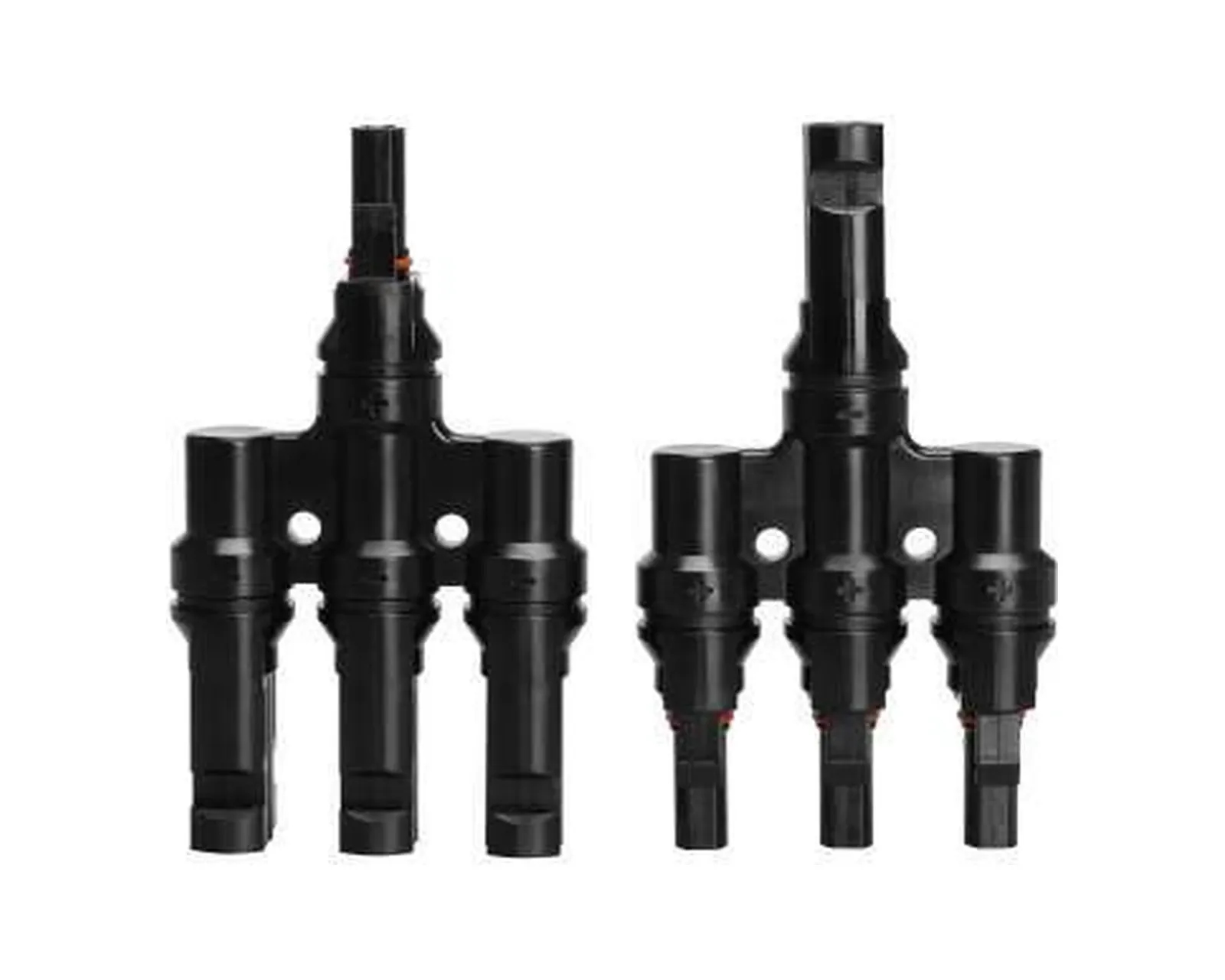

| PV-T3 / PV-T4 | 3-way or 4-way branch; 30A | Select according to the required string branch arrangement. |
Final suitability should be confirmed against the electrical design, protection study and local requirements.
Create straight field cable connections between photovoltaic modules and string wiring.
Use PV-T2, PV-T3 or PV-T4 pairs where two, three or four branches are required.
Use correctly assembled and mated connectors in photovoltaic field wiring installations.
VIOX can review connector voltage, cable size, contact, marking, packaging, tooling and controlled documentation against the project specification.
Electrical ratings, application conditions and product configuration are reviewed before quotation.
The selected reference, available options and controlled documents are aligned to the order.
Private labeling, product marking and packaging requirements can be reviewed for repeat supply.
Confirmed product identity, quantity and documentation move into controlled production and inspection.
The listed range includes PV-MC 1000V, PV-MC 1500V, PV-T2, PV-T3 and PV-T4.

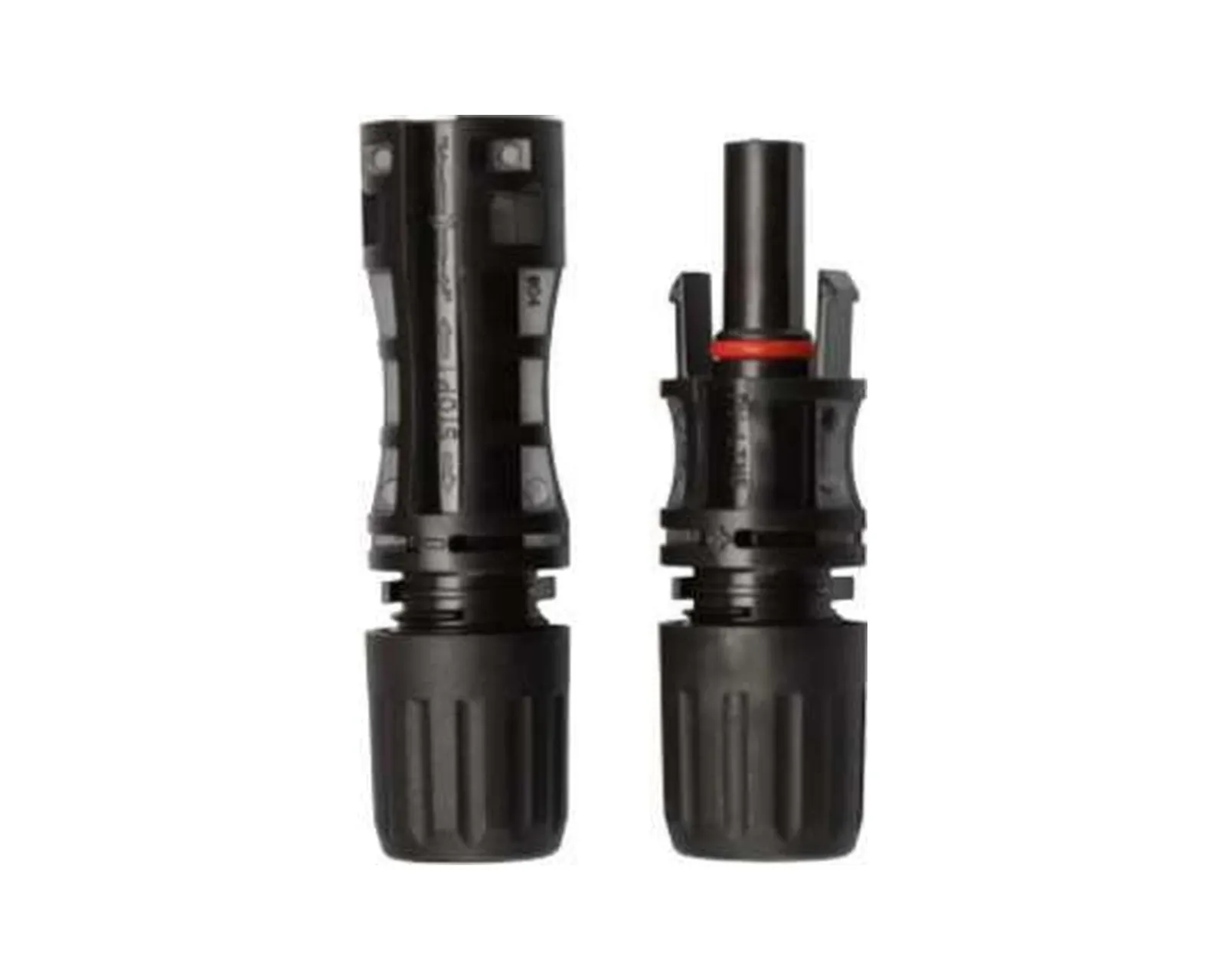

The PV-MC range includes a 1500V DC IEC reference. Always confirm the system voltage and controlled product documentation before ordering.
PV-T2, PV-T3 and PV-T4 provide two-way, three-way and four-way branch connector pairs.
The catalog lists IP67 protection when the connector is correctly assembled and mated.
