01VO-RSD Series
VO-RSD-1500-40-01
- Number of strings
- 1
- Maximum DC voltage
- 1500 V DC
- Maximum DC current
- 40 A
- Protection degree
- IP66
PRODUCT CATEGORY · PV emergency shutdown
1500V DC Rapid Shutdown Device
String-level photovoltaic emergency shutdown for safer rooftop response, servicing and system isolation.
Maximum DC voltage1500 V DC
Maximum DC current40 A
Operating references1500V/26A; 1250V/32A; 1000V/40A; 800V/40A
01 / PRODUCT RANGE

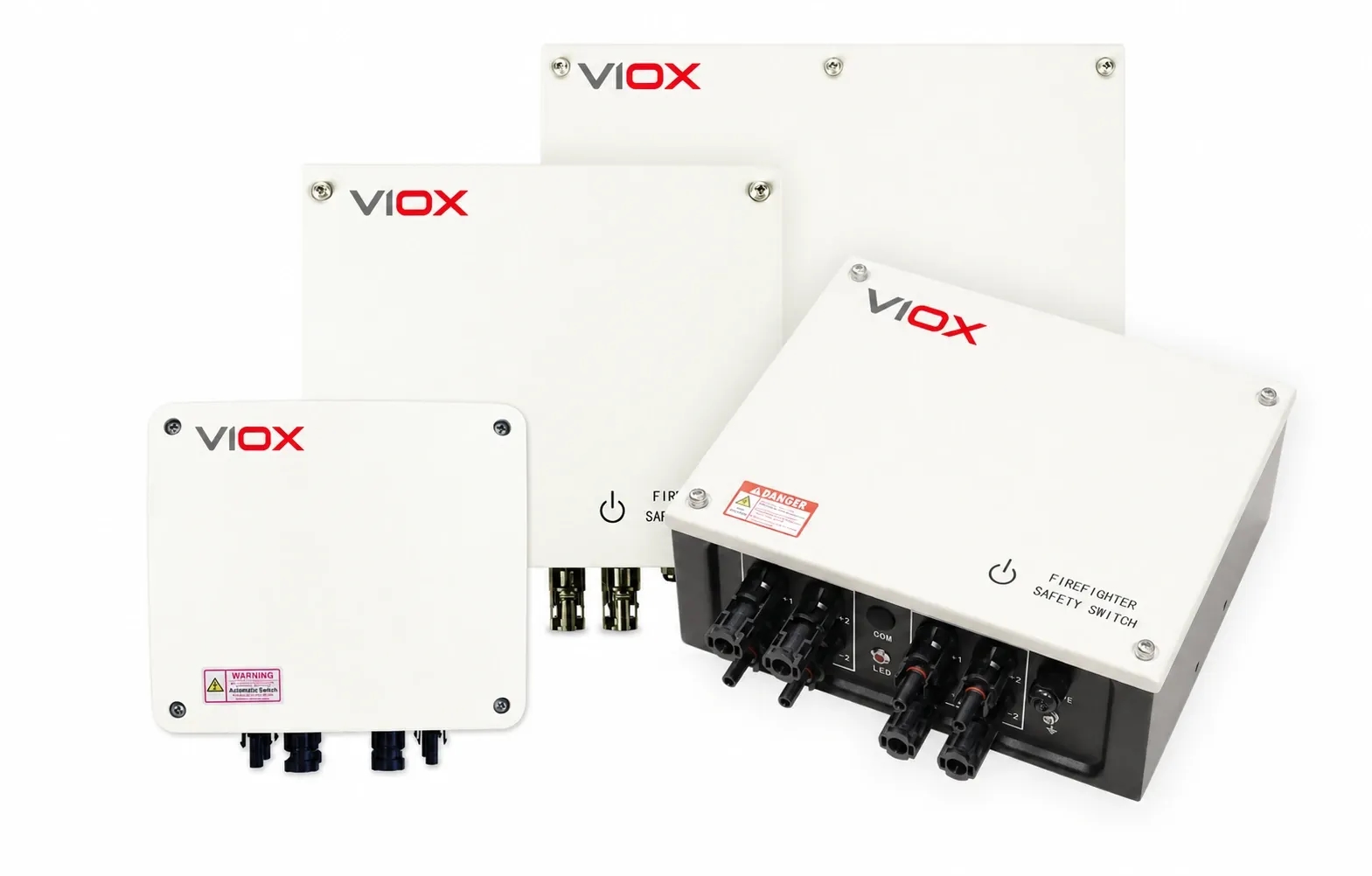

Firefighter safety switches for 1–10 PV strings
Select a standard VIOX reference by string count. Odd-string configurations can be reviewed as project-specific variants.
0102VO-RSD Series
VO-RSD-1500-40-02
- Number of strings
- 2
- Maximum DC voltage
- 1500 V DC
- Maximum DC current
- 40 A
- Protection degree
- IP66
03VO-RSD Series
VO-RSD-1500-40-04
- Number of strings
- 4
- Maximum DC voltage
- 1500 V DC
- Maximum DC current
- 40 A
- Protection degree
- IP66
04VO-RSD Series
VO-RSD-1500-40-06
- Number of strings
- 6
- Maximum DC voltage
- 1500 V DC
- Maximum DC current
- 40 A
- Protection degree
- IP66
05VO-RSD Series
VO-RSD-1500-40-08
- Number of strings
- 8
- Maximum DC voltage
- 1500 V DC
- Maximum DC current
- 40 A
- Protection degree
- IP66
06VO-RSD Series
VO-RSD-1500-40-10
- Number of strings
- 10
- Maximum DC voltage
- 1500 V DC
- Maximum DC current
- 40 A
- Protection degree
- IP66
VIOX rapid shutdown devices support module-level or string-level shutdown strategies for rooftop and commercial photovoltaic systems.
- Electrical ratings reviewed against the application
- OEM labeling and packaging support
- Documents matched to the confirmed order code
03 / TECHNICAL REFERENCE
Compare the VO-RSD 1500V model range
Use these values for initial sourcing. Final ratings and order references are confirmed in the approved quotation.
| Reference | Available range | Selection note |
|---|---|---|
| Standard string counts | 1, 2, 4, 6, 8 and 10 | Select by the number of independent PV strings. |
| Maximum DC voltage | 1500 V DC | Verify cold-weather open-circuit voltage. |
| Maximum current reference | 40 A | Confirm the applicable voltage/current combination. |
| Protection | IP66 / Class II | For outdoor photovoltaic installations. |
- 01Select the number of independent PV strings.
- 02Confirm maximum open-circuit voltage at the minimum site temperature.
- 03Confirm string operating current against the voltage/current reference.
- 04Confirm the AC control supply, shutdown method and feedback interface.
- 05Request the controlled datasheet and applicable certification evidence before approval.
05 / APPLICATIONS
PV shutdown applications
Final suitability should be confirmed against the electrical design, protection study and local requirements.
Residential rooftops
One- and two-string references for compact residential photovoltaic arrays.
Commercial rooftops
Four- to ten-string references for larger distributed photovoltaic systems.
Emergency isolation
String-level DC shutdown to support emergency-response and maintenance procedures.
06 / MANUFACTURING & OEM
VIOX OEM firefighter safety switch supply
Project supply can include controlled markings, packaging and documentation after the required ratings, interfaces and market approvals are confirmed.
Specification review
Electrical ratings, application conditions and product configuration are reviewed before quotation.
Model confirmation
The selected reference, available options and controlled documents are aligned to the order.
OEM presentation
Private labeling, product marking and packaging requirements can be reviewed for repeat supply.
Production release
Confirmed product identity, quantity and documentation move into controlled production and inspection.
How many PV strings can the VO-RSD series control?+
The standard VIOX range covers one, two, four, six, eight and ten PV strings.
What is the maximum DC voltage?+
The listed maximum system voltage is 1500 V DC. Always verify the array open-circuit voltage at the lowest design temperature.
Does the switch shut down automatically at high temperature?+
The listed internal temperature trigger is 70°C, at which the switch initiates automatic shutdown.
