How to Select a PV Combiner Box

Select a PV combiner box by converting the approved array and inverter design into a circuit-by-circuit specification. The minimum inputs are MPPT grouping, string count, corrected maximum DC voltage, string current and reverse-current exposure, required protection and isolation functions, output arrangement, installation environment, and destination-market documentation.

Do not select a box from “1000 V” and “number of strings” alone. Those two labels cannot confirm current capacity, protection coordination, SPD suitability, switching duty, enclosure performance, or inverter compatibility.

This workflow supports preliminary specification and procurement. Final calculations, protection coordination, assembly verification, and installation must be completed by qualified personnel under the applicable project rules.

If you first need the system role and component boundary, read What Is a PV Combiner Box and What Does It Do?. For coordination across the complete DC path, use the solar DC circuit-protection selection workflow.

Stage 1: Freeze the topology and string schedule

Confirm the inverter and MPPT topology

Start with the single-line diagram and inverter datasheet. Record:

• Number of inverter DC inputs and MPPTs
• Permitted strings per input
• Maximum DC input voltage
• MPPT operating-voltage range
• Maximum operating and short-circuit current per input
• Whether inputs are internally commoned or electrically independent
• Integrated fuse, SPD, switch, or monitoring functions

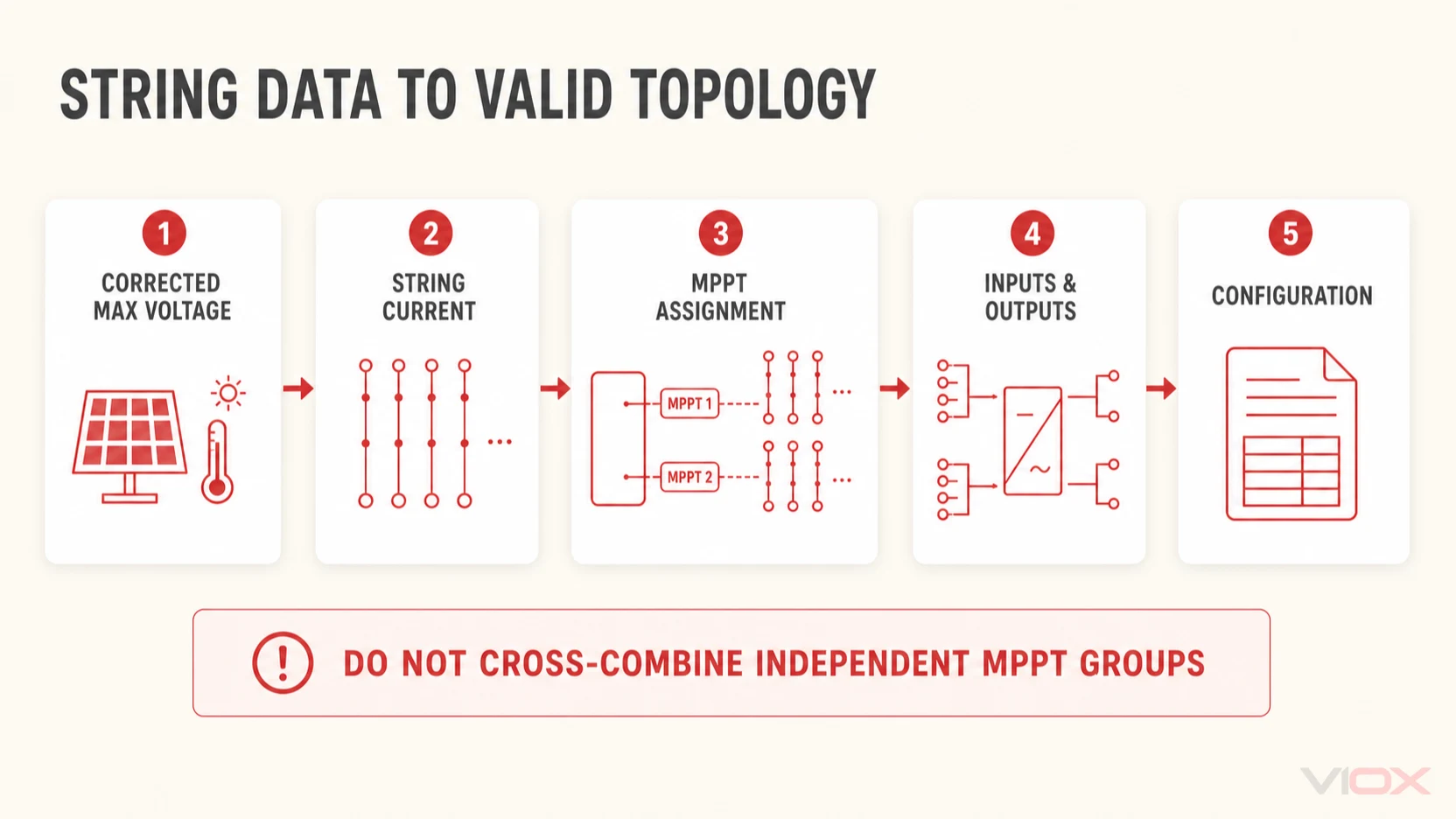

Allocate every string to an MPPT before defining combiner outputs. Strings facing different orientations, using different module counts, or assigned to separate trackers may need to remain in separate electrical groups.

The number of physical inputs on a box does not authorize strings to be combined. The inverter architecture controls the grouping.

Complete the string schedule

Create one row for every string or identical string group.

If strings are not electrically identical, do not collapse them into one generic row. Differences in module type, series count, orientation, or tracker assignment can change the valid combining arrangement.

Stage 2: Set voltage, current, and protection requirements

Set the combiner voltage requirement

Use the corrected maximum string voltage—not the nominal system label. The corrected result should follow the module temperature data, minimum design temperature, series-module count, and project-approved code method.

Verify voltage suitability across the complete assembly:

• Input terminals or connectors
• Fuse links and fuse holders
• Internal conductors and busbars
• SPD Ucpv and connection arrangement
• Output switch-disconnector or breaker
• Output terminals and cable glands
• Insulation, spacing, and assembly construction

The selected equipment rating must exceed or equal the required design value under the applicable rules, but adding an arbitrary “safety factor” is not a substitute for the required calculation.

The currently documented VIOX PV combiner box range covers 600 V and 1000 V classes in small 1-in/1-out through 3-in/3-out arrangements. These independent input/output arrangements are not automatically equivalent to an N-in/1-out box that combines several parallel strings onto one output. Confirm the required topology before treating voltage class or input count as a product match.

Determine string protection requirements

Evaluate the current that can flow into a faulted string from all parallel sources and any other connected equipment. Compare that exposure with:

• Module reverse-current limits or maximum series-fuse rating
• Input conductor current-carrying capacity
• Connector and terminal ratings
• Applicable PV-array design rules
• Prospective fault current and required breaking capacity

Where string fuses are required, specify a photovoltaic fuse system and verify both link and holder. The schedule should include:

• Fuse class/application
• Rated voltage
• Rated current
• Breaking capacity
• Time-current coordination
• Holder voltage/current rating
• Temperature and enclosure conditions
• Replacement and labeling requirements

IEC 60269-6 covers supplementary requirements for fuse-links used to protect PV systems. It does not remove the need to coordinate the exact PV DC fuse with the module, conductor, holder, and fault conditions.

Do not replace a specified fuse with a larger rating because of nuisance operation until the cause has been investigated. Incorrect class, temperature, loose connections, damaged wiring, reverse-current exposure, or a real fault can all require different corrective action.

Calculate the output-circuit requirements

For each combiner output, record the number of contributing strings and the project-calculated current. Then verify:

• Busbar and internal conductor capacity
• Output terminal and connector capacity
• Outgoing cable current-carrying capacity
• Output device continuous-current rating and any derating
• Prospective fault current from every connected source
• Inverter input-current and short-circuit-current limits

If a box has multiple outputs, document which inputs feed each output. A “3-in/3-out” arrangement can serve a very different task from “3-in/1-out.” Input/output notation describes topology, not protection completeness.

Stage 3: Specify surge protection and the output device

Define the surge-protection specification

The SPD requirement comes from the project's lightning and surge-risk design, conductor routing, earthing system, equipment withstand level, and applicable rules. For a PV DC SPD, state at least:

• Required SPD type
• Maximum continuous operating voltage for PV (Ucpv)
• Protection modes and pole arrangement
• Nominal discharge current (In)
• Maximum discharge current (Imax), or impulse current (Iimp) where relevant
• Voltage protection level (Up)
• Short-circuit behavior and backup-protection requirement
• Local status indication and remote contact, if required
• Replaceable cartridge requirement, if required

IEC 61643-31 provides requirements and test methods for SPDs intended for the DC side of PV installations. The selection still needs installation-level coordination. A generic “Type 2 SPD included” description is incomplete without voltage, mode, discharge, protection-level, and short-circuit data.

See the VIOX PV DC SPD family for available product categories, then verify the exact model against the completed schedule.

Define output switching, isolation, or breaker protection

State the required function instead of asking only for “a DC switch.” Possible requirements include:

• Operational switching
• Maintenance isolation
• Overcurrent and short-circuit protection
• Lockable OFF position
• Visible or reliable position indication
• Remote auxiliary status

For a DC isolator switch, verify voltage, current, number of poles, wiring arrangement, DC utilization category, operating duty, and isolation markings. For a DC circuit breaker, also verify breaking capacity and trip behavior.

IEC 60947-3 covers switches, disconnectors, switch-disconnectors, and fuse-combination units within its scope. IEC 60947-2 covers circuit breakers within its scope. A standard reference must be tied to the exact model and rating; it should not be used as a generic compliance shortcut for the finished assembly.

Stage 4: Match the enclosure and connections to the site

Select the enclosure from the site conditions

“Outdoor” is not enough information. Record:

• Minimum and maximum ambient temperature
• Direct solar exposure and UV conditions
• Rain, dust, washdown, and condensation exposure
• Salt, ammonia, chemical, or corrosion conditions
• Altitude
• Impact and vandalism risk
• Mounting surface and orientation
• Required ingress-protection level
• Enclosure material and corrosion treatment
• Cable-entry direction, quantity, and gland ranges
• Drain, vent, or pressure-equalization requirements where engineered
• Service access and clearance

Check thermal performance with all protective devices operating inside the enclosure. Component current ratings may change with ambient temperature, grouping, and heat dissipation.

An IP code is one part of the enclosure specification. It does not by itself establish UV resistance, corrosion resistance, condensation control, or long-term suitability for a particular site.

Specify terminals, cables, and connectors

Record conductor material, size range, insulation type, temperature rating, and termination method for every input and output. Confirm that:

• Terminals accept the specified conductor
• Cable glands match outside diameters and maintain enclosure protection
• Positive and negative circuits are clearly identified
• Bending space is adequate
• Protective-earthing points are defined
• Field connectors are compatible as a complete connection system

Mating connectors from different manufacturers merely because they share a familiar form factor can create compatibility and certification problems. Use documented, compatible connector pairs and the specified tooling. See the VIOX MC4 solar connector product family for project options.

Stage 5: Define monitoring and controlled documents

Decide whether monitoring is required

Monitoring can be simple or extensive. Define the actual output needed:

• Individual string current or grouped current
• Fuse status
• SPD status and remote alarm
• Isolator or breaker auxiliary position
• Enclosure temperature
• Door status
• Communication protocol and address scheme
• Auxiliary supply voltage
• Local display or remote-only reporting

Confirm how monitoring channels map to string labels and how data will integrate with the plant supervisory system. “Monitoring included” is not a testable requirement.

Define documentation and verification

Include required deliverables in the RFQ, not after production. Depending on the project, request:

• General arrangement drawing
• Single-line and internal wiring diagrams
• Bill of materials with exact manufacturer/model references
• Terminal and cable-entry schedule
• Device datasheets
• Applicable certificates matched to exact models and ratings
• Routine inspection or test records
• Torque schedule
• Labels and nameplate artwork
• Packaging and spare-parts list
• Change-control and document-revision requirements

Separate component evidence from assembly evidence. A certificate for a fuse or SPD proves only the scope stated on that certificate; it does not automatically cover the complete box.

Stage 6: Build and review the RFQ

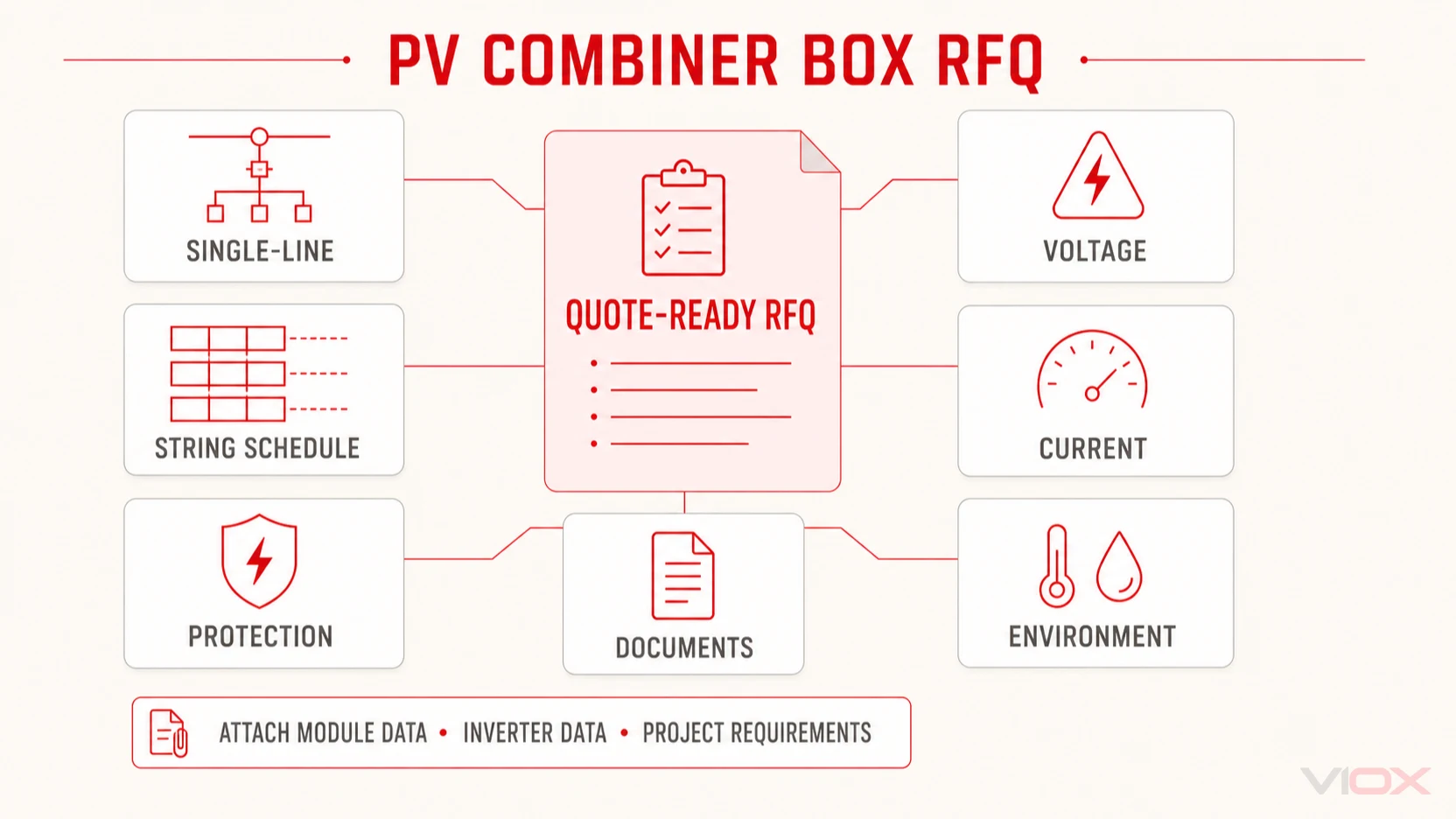

Illustrative PV combiner box RFQ structure

Consider a hypothetical rooftop project with several strings divided across two independent inverter MPPTs. The design team wants one outdoor assembly near the array, but the MPPT groups must remain separate.

The quote request should define the architecture in fields rather than asking for a generic “multi-string box”:

This example intentionally omits numeric ratings. Those values must come from the project's module, inverter, environmental, and engineering calculations—not from a reusable article.

Reject these incomplete selection shortcuts

• “Choose a 1000 V box for a 1000 V system.” The corrected maximum voltage and every component rating still need verification.
• “Use one fuse size for all modules.” Module current, maximum series-fuse rating, conductor, holder, and design rules vary.
• “Every outdoor box should be IP65.” The site environment and all enclosure performance needs must be specified.
• “All strings can share one output.” MPPT grouping and inverter current limits may prohibit it.
• “Type 2 SPD” is a complete SPD specification. Ucpv, modes, discharge ratings, Up, short-circuit behavior, and coordination are still missing.
• “The component certificates certify the whole box.” Component and assembly evidence have different scopes.

Final PV combiner box RFQ checklist

Before requesting a quotation, attach:

• Module datasheet and inverter datasheet
• Approved or proposed single-line diagram
• String schedule and MPPT allocation
• Corrected maximum string-voltage calculation
• Design current and reverse-current analysis
• Required input/output topology
• String protection decision and coordination data
• SPD selection fields
• Output switching/isolation/protection function
• Input and output cable schedule
• Environmental and enclosure requirements
• Monitoring and auxiliary requirements
• Destination country and applicable standards/certification scheme
• Drawing, test, labeling, packaging, and spare-parts requirements

Send the completed schedule to sales@vioxsolar.com for a VIOX configuration discussion. Any proposed model or assembly should then be reviewed against the project's controlled documents by the responsible engineer.
