A DC MCB is a miniature circuit breaker designed to interrupt direct-current overloads and short circuits within its documented voltage, current, fault-level, polarity, and installation limits. In a solar photovoltaic system, the appropriate device depends on the actual circuit and the manufacturer's instructions. A DC MCB does not automatically replace a PV fuse, switch-disconnector, surge protective device, or complete protection design.
For engineers, installers, and procurement teams, the practical starting point is to identify where the breaker sits, what electrical conditions it must withstand, and which adjacent protection functions belong to other devices. This guide maps those decisions without turning a general overview into an installation procedure.
What Is a DC MCB?
MCB stands for miniature circuit breaker. A DC MCB is a compact protective device explicitly designed and rated for direct-current circuits, usually fitted within a distribution assembly, combiner enclosure, or comparable equipment arrangement.
Its central protection functions are distinct:
- Overload protection responds to sustained current above the device's applicable operating conditions.
- Short-circuit protection responds to a fault capable of producing a current that the breaker must interrupt safely.
Neither function can be established from physical appearance alone. The product's DC voltage rating, current rating, breaking capacity, pole arrangement, polarity restrictions, and installation instructions determine whether a particular breaker suits a particular circuit.
The word “miniature” describes a product class and format. It does not mean the breaker can safely interrupt every DC source, nor does a larger ampere number make an unsuitable voltage rating acceptable.
Why Solar PV Systems Need DC-Rated Circuit Breakers
Direct current creates a different interruption challenge from alternating current. An AC waveform regularly passes through zero; a DC current does not provide that natural current-zero transition. When breaker contacts open under load or fault, the resulting arc therefore needs a contact system and extinguishing arrangement suitable for the actual DC application.
Consequently, a breaker marked for an AC voltage cannot be assumed suitable for the same DC voltage. A product can carry both AC and DC ratings, but the DC rating must be explicit and must apply to the selected configuration.
Solar modules add another complication: string voltage changes with operating conditions. Designers assess the array's maximum expected voltage using the project's applicable calculation method, the module's open-circuit voltage data, temperature coefficient, and minimum design temperature. The selected breaker's relevant DC rating must accommodate that project result.
No single multiplier, pole arrangement, or nominal system label resolves this check for every jurisdiction. The module documentation, adopted installation rules, project design, and device instructions all matter.

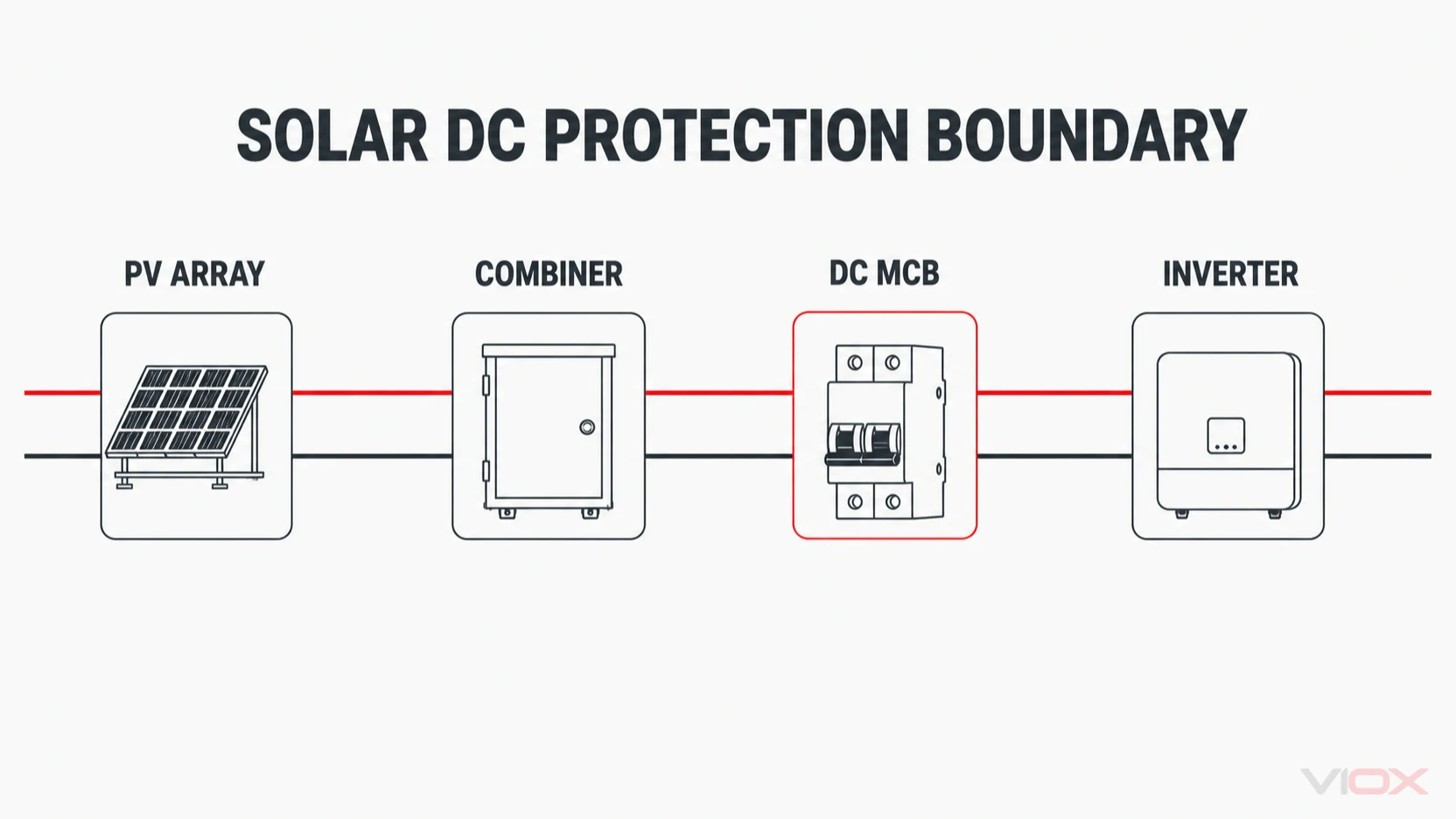

Where DC MCBs Are Used in a Solar Power System
A photovoltaic installation can include several distinct DC circuit locations. The fact that a breaker is suitable for one location does not establish suitability for every other location.
PV string circuits
Individual strings may require overcurrent protection depending on system architecture, possible reverse-current contribution, module limitations, conductor characteristics, and applicable installation rules. Where protection is required, the specified device must be appropriate for photovoltaic duty and properly coordinated with the module and conductors.
Some designs use dedicated PV fuse systems instead of DC MCBs. The choice follows the project-specific protection study rather than a universal preference for one device.
Combiner-box circuits
Combiner assemblies collect multiple string circuits and can introduce different protection requirements at individual inputs and combined outputs. A breaker inside a combiner must suit its actual position, enclosure conditions, grouping, and available fault behavior.
Our guide to what a PV combiner box does explains the assembly boundary, while the PV combiner-box selection guide addresses broader enclosure and system coordination.
Inverter-side DC circuits
The circuit between array equipment and an inverter can require switching, isolation, or overcurrent protection according to system architecture and local requirements. These functions are not interchangeable: a breaker does not become a compliant isolator simply because it has an operating handle.
Inverter input limitations, maximum power point tracker grouping, conductor arrangements, and the equipment manufacturer's requirements must remain part of the assessment.
Battery and energy-storage circuits
Battery energy storage is another direct-current application, but its available fault current and source behavior can differ substantially from a PV string. A breaker suitable for an array circuit should not be transferred to a battery circuit without verifying the actual battery fault contribution, operating voltage, interruption rating, and application approval.
That distinction is especially important in hybrid systems, where several DC subsystems can exist within one installation while presenting different protection duties.
Key DC MCB Ratings and Technical Specifications
A useful datasheet review separates the properties a breaker must possess from the project information needed to validate those properties.
| Specification | What it describes | What still requires verification |
|---|---|---|
| Rated DC voltage | Maximum documented operating voltage for the applicable configuration. | Temperature-corrected circuit voltage, selected pole arrangement, and actual connection diagram. |
| Rated current | Current rating under the manufacturer's stated operating conditions. | Circuit design current, conductor coordination, ambient temperature, and enclosure effects. |
| Breaking capacity | Fault current the device can interrupt under specified test conditions. | Prospective fault current at the actual installation point and applicable DC test conditions. |
| Number of poles | The available switching or protective pole arrangement. | System earthing, conductor treatment, voltage per configuration, and manufacturer wiring instructions. |
| Polarity | Whether the device has directional connection requirements or a documented polarity-free design. | Exact model markings, source direction, possible reverse feed, and controlled installation diagram. |
| Operating environment | Permitted temperature, mounting, enclosure, and associated operating conditions. | Grouping, thermal rise, enclosure protection, terminals, and the specific equipment assembly. |
Rated DC operating voltage
A series-level headline such as “up to 1000 V DC” describes a product-family ceiling, not the rating of every breaker in that family. A one-pole, two-pole, or four-pole configuration may have different documented limits or required arrangements.
Always match the exact ordered configuration to the maximum voltage calculated for its circuit. Do not infer a connection method from the product photograph or assume that poles can be connected in any series arrangement.
Rated current
The breaker current rating must coordinate with circuit design, conductor capability, protective objectives, and stated operating conditions. Elevated enclosure temperatures or grouped protective devices can affect practical application.
A higher current rating does not automatically mean better protection. Oversizing can undermine the coordination the breaker is supposed to provide.
Breaking capacity
Breaking capacity describes fault-interruption ability, not continuous operating current. A breaker can have an appropriate ampere rating yet remain unsuitable if the prospective fault current exceeds its documented interruption capability.
This is where PV-source behavior and battery-source behavior need especially careful separation. Confirm the available fault current at the actual circuit location rather than transferring assumptions between subsystems.
Pole arrangement and polarity
The number of poles affects how a device is configured within a particular DC system. Whether one conductor, multiple conductors, or a particular protective arrangement must be switched depends on the system design, applicable installation rules, and manufacturer instructions.
Likewise, “polarity-free” is a manufacturer-documented product characteristic, not a reason to ignore the specific wiring diagram. Directional devices require particular attention to their marked connection conditions.
Trip characteristics and enclosure conditions
Product families may offer different trip characteristics, but the appropriate choice depends on the circuit's operating and fault behavior. Thermal conditions, mounting, conductor terminations, and enclosure construction also affect the complete application.
For a broader explanation of protective-device families, see the guide to MCBs, MCCBs, RCCBs, and RCBOs.
Types of DC MCB Used in Solar Applications
DC MCBs are commonly differentiated by pole count, current range, voltage configuration, connection characteristics, and intended equipment application.
A compact lower-current breaker can be appropriate for a documented string or equipment circuit, while a higher-current miniature breaker may address a different distribution or combined-output requirement. That distinction must still be validated against voltage, fault level, protection coordination, and the device instructions.
Polarity-sensitive and polarity-free products also exist. The useful distinction is not whether the terminal position looks convenient; it is whether the exact product documentation permits the source direction and application under consideration.
When the application exceeds an MCB's documented current, voltage, or interruption capability, a suitable DC molded-case circuit breaker may need evaluation instead. Product class alone does not prove suitability: the actual DC ratings and coordination remain decisive.
DC MCB vs. Other Solar Protection Devices
Several components appear close together in a PV assembly while performing different jobs. Choosing among them starts with the required function rather than with the shape of the device.
| Device | Primary function | Boundary that must remain clear |
|---|---|---|
| DC MCB | Documented DC overload and short-circuit protection within its stated application limits. | Does not automatically provide certified isolation, surge limitation, rapid shutdown, or arc-fault detection. |
| AC MCB | Overcurrent protection within the product's documented AC application. | An AC rating is not evidence of suitability for a PV DC circuit. |
| PV DC fuse | Coordinated overcurrent protection using a fuse system suitable for the specified photovoltaic duty. | Fuse characteristics, holder, conductor, and module coordination must be assessed together. |
| DC isolator | Switching or isolation when the device is specifically rated and identified for that function. | Isolation does not automatically provide overload or short-circuit protection. |
| DC MCCB | Circuit-breaker protection in documented applications that may require a different current or fault-capacity range. | The larger device still needs verified DC voltage, interruption capacity, and application evidence. |
PV DC fuse products and DC isolator switches should therefore be evaluated against their own functions rather than treated as interchangeable substitutes for a DC MCB.
Surge protection is another separate function. A surge protective device limits transient overvoltage within its specified application; it is not a circuit breaker and does not eliminate the need for a coordinated overcurrent-protection design.
Standards and Compliance Boundaries
An appropriate standards discussion answers three separate questions: what a standard covers, which product or installation the standard applies to, and what evidence exists for the exact device being purchased.
IEC 60947-2
IEC 60947-2:2024 addresses circuit breakers within its published low-voltage switchgear and controlgear scope, including stated DC applications. It is an important product-standard reference when evaluating industrial circuit breakers.
However, referencing that standard does not certify every breaker in a manufacturer's catalog. Confirm the exact model, applicable edition, product documentation, test evidence, and relevant market requirements.
IEC 60898-2
IEC 60898-2:2016 addresses circuit breakers for household and similar installations with its own defined AC/DC scope. Its published DC voltage boundaries are narrower than the headline voltages often associated with higher-voltage PV equipment.
For that reason, citing IEC 60898-2 alone does not establish that a breaker is suitable for a 1000 V or 1200 V photovoltaic circuit. Match the actual standard, product scope, and marked configuration to the real application.
UL and North American applications
North American projects may involve relevant UL product categories, photovoltaic equipment requirements, listing conditions, and installation-code obligations. UL describes solar balance-of-system certification and provides a circuit-breaker marking guide that illustrates why product markings and application category matter.
These resources explain the framework; they do not prove that any particular VIOX breaker holds a UL listing. Request the exact controlled certificate or listing evidence whenever a project requires it.

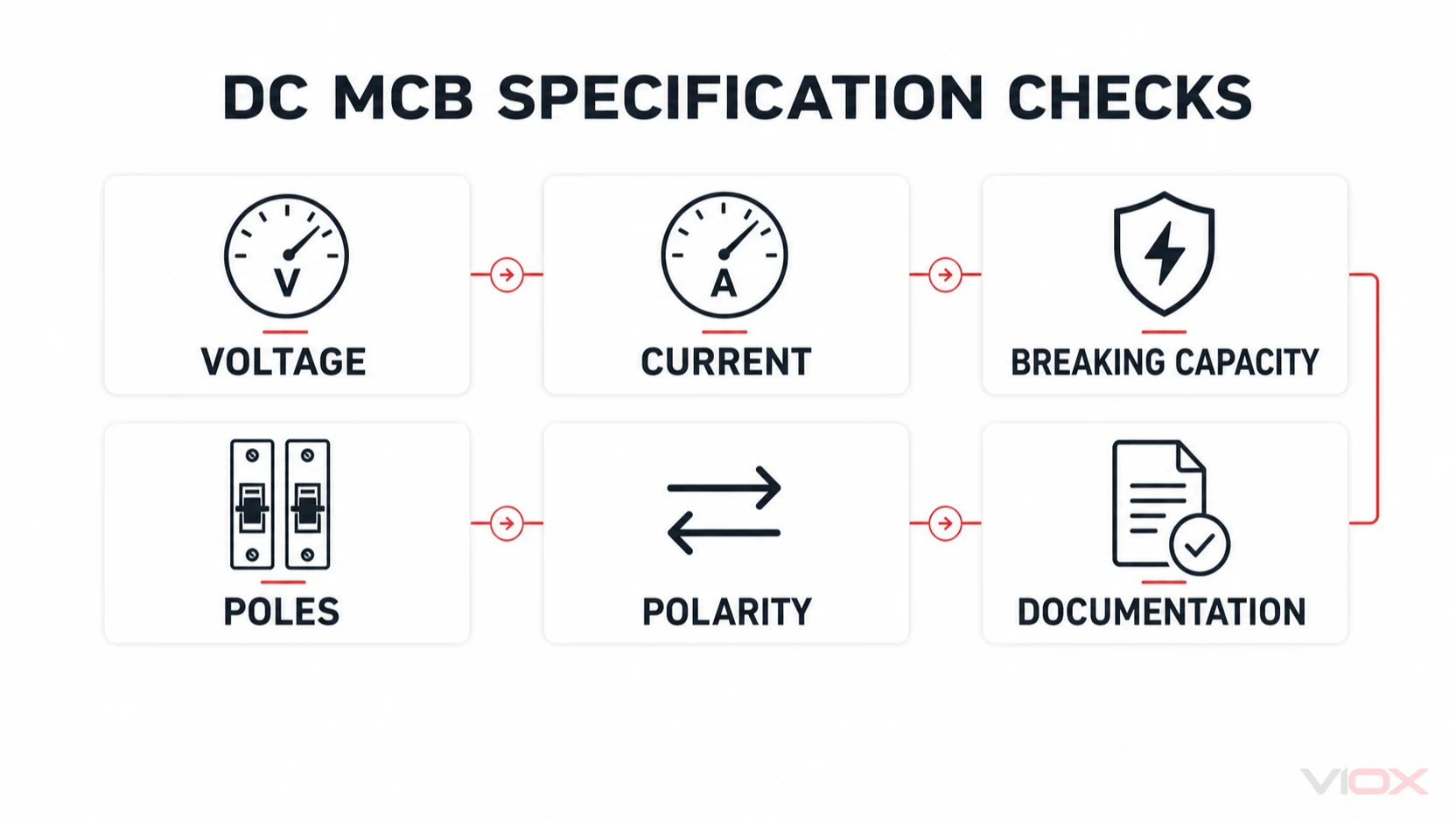

How to Start Selecting a DC MCB
The initial specification review can be reduced to six linked checks:
- Voltage: Establish the circuit's maximum expected DC voltage using the project's applicable method.
- Current: Establish the circuit design current and the required conductor-protection coordination.
- Breaking capacity: Determine prospective fault current at the actual installation location.
- Poles: Confirm the documented arrangement required by the system and applicable installation rules.
- Polarity: Check source direction, device marking, and the manufacturer's exact connection diagram.
- Evidence: Confirm the relevant product standard, market requirements, operating conditions, and controlled technical documentation.
This checklist identifies the information a designer must gather; it is not a universal sizing procedure or permission to energize an unverified configuration. For a wider equipment-level comparison, continue to how to select circuit protection for a solar DC system.
VIOX DC MCB Product Families
VIOX publishes several modular DC circuit-breaker families that provide useful starting points for model evaluation. The figures below are published family-level ceilings, not a promise that every pole arrangement carries the same rating.
| Product family | Series current ceiling | Series DC voltage ceiling | Verification before specification |
|---|---|---|---|
| VOB3-63DC | Up to 63 A | Up to 1000 V DC | Confirm exact pole configuration, DC interruption rating, trip characteristic, and installation diagram. |
| VOB6-63DC | Up to 63 A | Up to 1200 V DC | Confirm exact configuration voltage, application conditions, connection instructions, and required market evidence. |
| VOB2-125DC | Up to 125 A | Up to 1000 V DC | Confirm selected model current, configuration voltage, fault capability, terminals, and enclosure conditions. |
The manufacturer describes these families as polarity-free, but that description does not override their actual controlled wiring instructions. Likewise, a published family voltage ceiling does not establish a given one-pole, two-pole, or four-pole configuration's permissible voltage.
