A photovoltaic (PV) DC fuse is a one-time overcurrent protective device used where reverse current or another available DC source could exceed the safe limit of a PV string, conductor, module, or coordinated component. It is not selected from current alone. A defensible specification also checks maximum circuit voltage, PV fuse duty, breaking capability, module limits, time-current behavior, the matching fuseholder, and the conditions inside the enclosure.
This guide maps those decisions and shows where to continue. It focuses on PV-array DC circuits. Battery-bank, electric-vehicle, semiconductor, automotive, and general AC fuse design are outside its boundary.
Where a PV DC Fuse Sits in the System
In a simple PV string with no other source capable of feeding a damaging current into a fault, a fuse may add no useful overcurrent protection. The design question changes when strings are connected in parallel or when another source can feed the circuit.

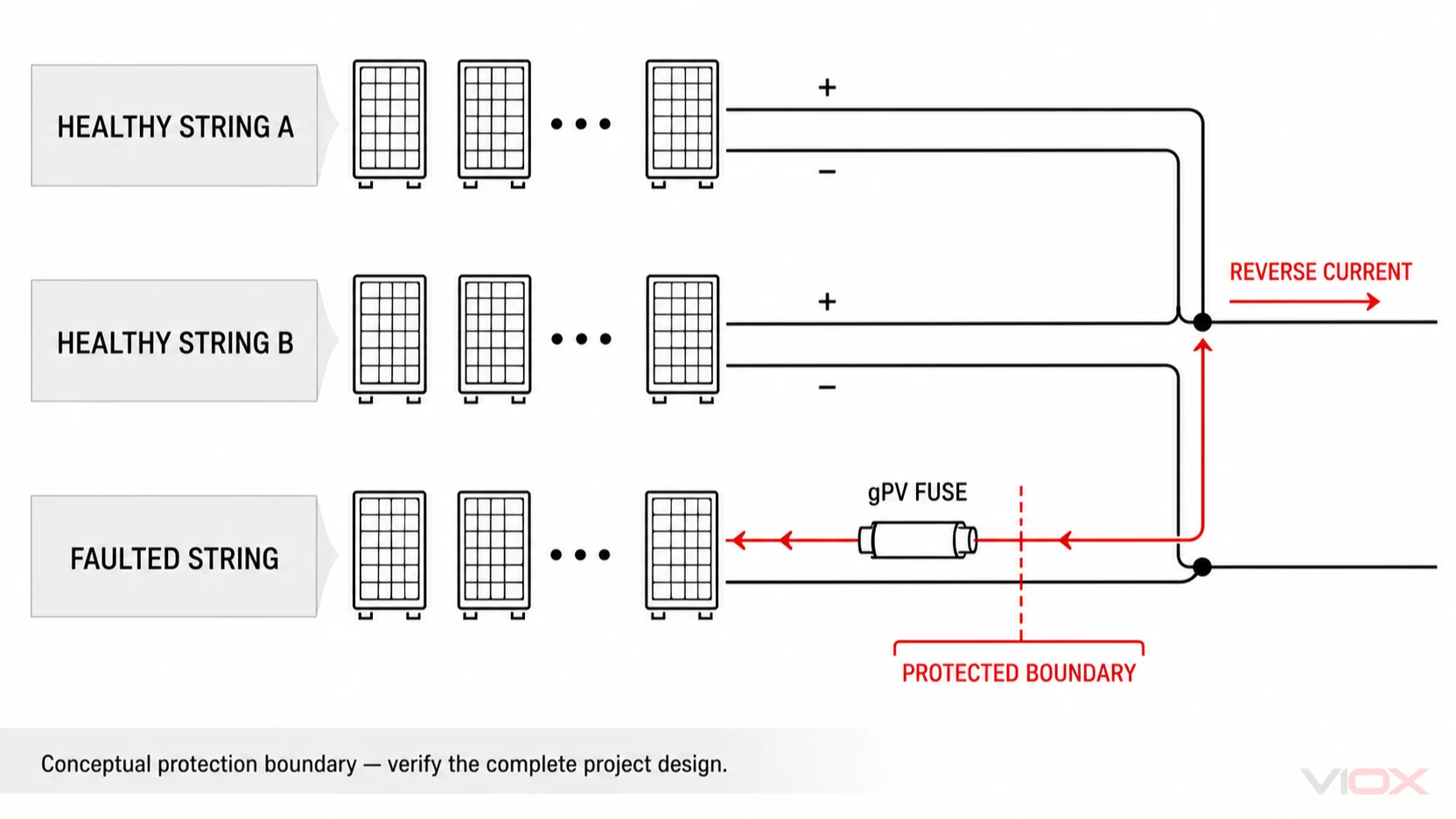

If one parallel string develops a fault, healthy strings may feed reverse current toward that string. A string fuse is positioned so it can interrupt that contribution before the protected module, string conductor, or another coordinated component is exposed beyond its permitted limit. The relevant source is therefore not only the current produced by the faulted string; it is the current available from the rest of the architecture.
Common PV fuse positions include:
- individual string inputs before or inside a PV combiner box;
- array or subarray circuits where several combined sources create a higher available current;
- coordinated protection points inside equipment designed and documented for PV DC service.
The fuse protects a defined electrical boundary. It does not automatically provide load-break switching, visible isolation, surge limitation, or arc-fault detection. Start with the complete source and device architecture described in How to Select Circuit Protection for a Solar DC System, then assign the fuse only the overcurrent function it is expected to perform.
DC Fuse, PV Fuse, gPV Fuse-Link, and Fuseholder
These terms are related but not interchangeable.
| Term | Meaning in this guide | Boundary to remember |
|---|---|---|
| DC fuse | A fuse intended and rated to interrupt specified direct-current conditions | “DC” alone does not establish suitability for PV string protection |
| PV fuse | A fuse designed for photovoltaic circuit duty under the applicable product framework | Verify the exact marking, voltage, current, breaking capability, and documentation |
| gPV fuse-link | The replaceable fuse-link associated with full-range PV protection under the IEC 60269-6 framework | The marking belongs to a defined fuse-link duty; it is not a generic label for every DC fuse |
| Fuseholder | The component that accepts and connects the fuse-link | Holder voltage, current, thermal behavior, terminals, touch protection, and format must coordinate with the link |
| Fuse assembly | The working combination of fuse-link, holder, conductors, terminals, enclosure, and service conditions | A suitable link cannot compensate for an unsuitable holder or overheated termination |
The replaceable element is the fuse-link. The fuseholder provides the mechanical and electrical interface. Procurement and design records should identify both, because changing the holder, link format, terminal arrangement, or enclosure temperature can change the behavior of the installed protection point.
How a PV Fuse Operates
A fuse-link contains an element that heats as current flows. When the current and duration reach the link's operating characteristic, the element melts and the fuse interrupts the circuit within its rated capability. The result is a permanent open state: unlike a circuit breaker, the fuse cannot be reset.
That one-time operation has an important maintenance consequence. Replacing an open fuse without investigating the cause can restore the same fault path. The service process should establish why the fuse operated and inspect the associated holder, terminals, conductors, polarity, affected string, and coordinated components under the site's approved safe-work procedure. This article does not provide an energized testing or replacement procedure.
Fuse operation also depends on more than the number printed in amperes. Time-current behavior, cyclic PV loading, enclosure temperature, contact resistance, holder condition, and the available reverse or fault current all affect the real protection outcome. Those variables belong in the engineering record, not in an assumed universal rule.
PV DC Fuse Types and Physical Formats
PV protection uses fuse-links and holders in several physical arrangements. For the current VIOX Solar family, the relevant cylindrical formats are:
- 10 × 38 mm, used by the RT18-32 / VOPV-32 platform;
- 14 × 51 mm, used by the RT18-63 / VOPV-63 platform.
The physical size is an interface, not a complete specification. Two links that fit the same nominal format should not be treated as interchangeable until their PV/DC duty, voltage, current, breaking capability, time-current data, dimensions, holder compatibility, and controlled documentation have been compared.
This distinction is particularly important when a product family can also serve other low-voltage circuits. A general-purpose fuse-link, an AC fuse, and a PV-rated fuse-link may share a familiar shape while having different application evidence.

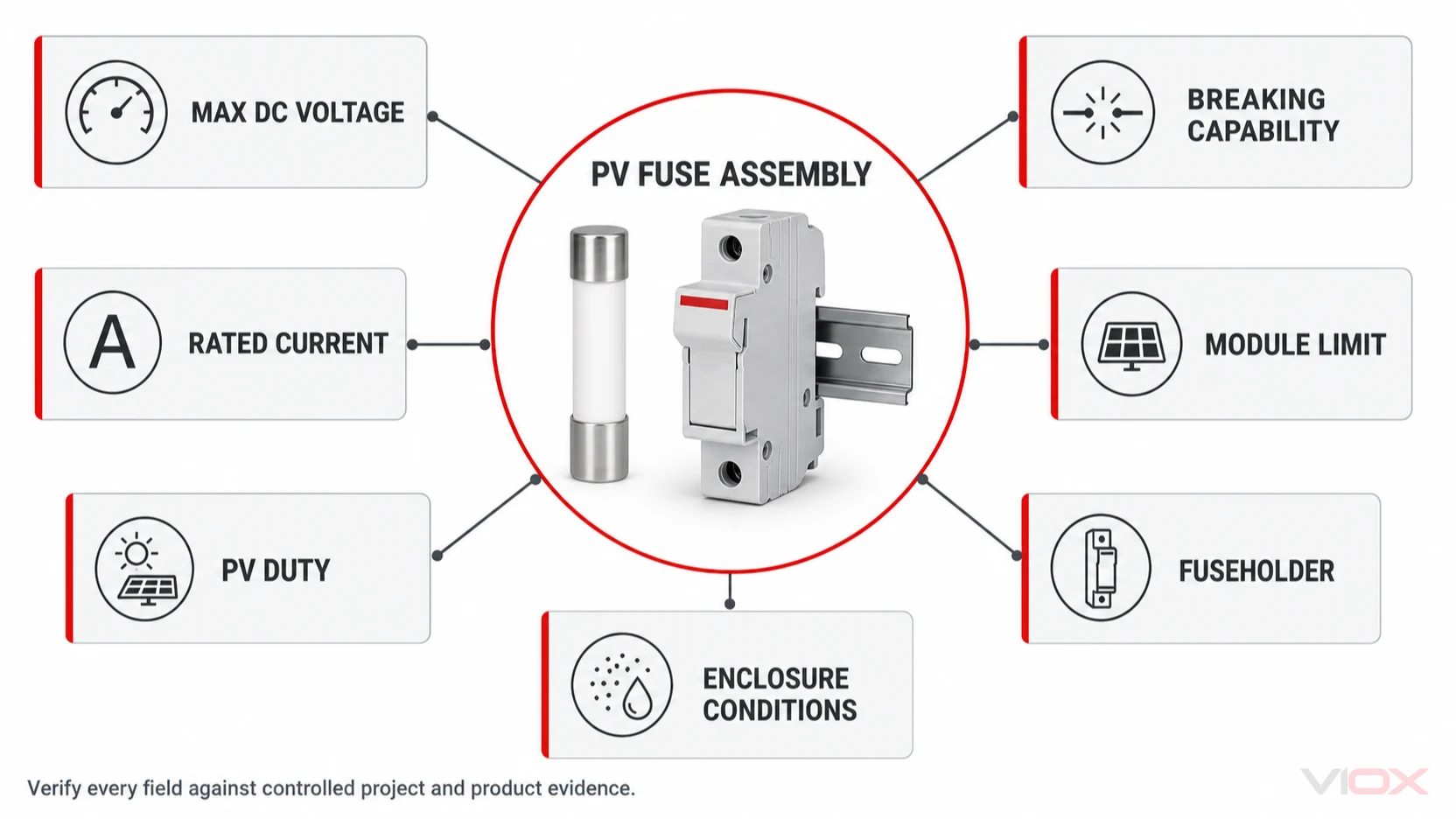

The Ratings That Define a PV Fuse Application
The following map separates the main specification fields and the evidence needed to close each one.
| Specification field | Why it matters | What must be verified |
|---|---|---|
| Maximum DC voltage | The fuse must interrupt at the highest credible circuit voltage, not only nominal operating voltage | Corrected maximum string open-circuit voltage, circuit topology, polarity arrangement, and exact link/holder DC rating |
| Rated current | The link must carry expected PV current without unwanted operation while remaining within the protected equipment limits | Module current data, design factors, environmental conditions, conductor limits, and available standard ratings |
| PV utilization duty | PV strings can present sustained, relatively low fault-current conditions compared with many conventional circuits | Applicable gPV or other documented PV duty for the exact product and market |
| Breaking capability | The fuse must interrupt the available DC current under the specified voltage and circuit conditions | Declared breaking rating and the maximum available reverse/fault current at that location |
| Time-current characteristic | Operating time determines whether the fuse protects the intended component without unnecessary opening | Manufacturer curve, tolerance, cyclic loading, inrush or transient behavior where relevant, and coordination study |
| Module maximum series-fuse rating | The module manufacturer defines a key coordination boundary | Exact controlled module datasheet and approved project module reference |
| Conductor coordination | The protected conductor must remain within its applicable thermal limit | Cable type, cross-section, installation method, temperature, grouping, and applicable design rules |
| Fuse-link format | The link must fit and connect correctly | 10 × 38, 14 × 51, or another exact dimensional system and contact arrangement |
| Fuseholder rating | The holder carries current continuously and contains the interruption event | DC voltage, current, accepted link, terminal range, tightening data, touch protection, and temperature behavior |
| Enclosure conditions | Heat, ingress, contamination, altitude, and terminal resistance can change performance | Assembly temperature rise, enclosure rating, ventilation, mounting, altitude, maintenance access, and manufacturer limits |
The circuit voltage must be compared with the complete fuse assembly rating. Likewise, the module maximum series-fuse rating is not a recommendation to install that exact ampere value; it is an upper coordination boundary that must be considered together with operating current, reverse-current exposure, conductor protection, and available fuse characteristics.
How to Decide Whether a PV String Needs a Fuse
There is no reliable universal answer based only on a phrase such as “three strings require fuses.” The number of parallel strings can influence reverse-current exposure, but the final decision depends on the electrical behavior and limits of the actual system.
Use this sequence at orientation level:
- Draw every source path. Identify the PV strings, combining points, inverter inputs, DC conditioning equipment, and any other source that can feed the circuit.
- Identify the faulted boundary. Define the string, conductor, module, or component that the protective device would protect.
- Determine the available reverse or fault current. Account for the healthy parallel sources and the operating assumptions required by the applicable design method.
- Check the controlled module data. Record short-circuit current, relevant coefficients, and maximum series-fuse rating from the exact module datasheet.
- Check the conductor and assembly. Include cable installation, holder, terminals, enclosure temperature, and coordination with upstream and downstream devices.
- Apply the target-market rules. IEC-based, NEC-based, and other national frameworks must not be blended into one formula.
- Produce a complete specification. State the fuse-link duty, voltage, current, breaking capability, format, holder, environmental conditions, and required evidence.
This process determines whether protection is needed before it determines a catalog number. A future detailed selection guide can take the verified project inputs through the rating and RFQ workflow; this Hub deliberately stops at the decision map.
PV Fuse vs. DC Breaker, Isolator, and SPD
Solar DC devices are sometimes grouped together because they appear in the same combiner box or inverter-side assembly. Their functions remain different.
| Device | Primary function | What it does not automatically provide |
|---|---|---|
| PV fuse | One-time overcurrent interruption within its documented PV/DC duty | Resetting, routine switching, visible isolation, surge limitation |
| DC circuit breaker | Automatic overcurrent interruption with a resettable mechanism when correctly rated and applied | Every breaker is not automatically a load-break isolator or suitable for every PV topology |
| DC switch-disconnector | Intentional switching and isolation within its documented utilization category | Overcurrent protection unless the assembly explicitly includes and coordinates it |
| PV DC SPD | Limits transient overvoltage by diverting surge current | Sustained overcurrent protection, switching, or isolation |
A fuse and breaker should not be compared as if one is universally superior. The source behavior, interruption duty, switching need, maintenance strategy, coordination objective, available fault current, and product evidence determine the fit. For breaker-specific orientation, use the DC MCB Guide for Solar PV Systems.
Standards and Evidence Boundaries
Standards answer different questions. A standard named in a specification does not by itself prove that a particular product, holder, or assembled enclosure complies.
- IEC 60269-1 provides general requirements for low-voltage fuses.
- IEC 60269-6 adds supplementary requirements for fuse-links used to protect solar PV energy systems. Its published scope covers PV strings and arrays in circuits up to 1,500 V DC.
- IEC TR 60269-5 provides application guidance for low-voltage fuses and includes PV protection guidance.
- IEC 62548-1 addresses PV-array design requirements, including DC wiring and electrical protection devices.
- UL 248-19 is identified by UL Solutions for photovoltaic fuses in North American product evaluation.
- UL 4248-19 is identified by UL Solutions for photovoltaic fuseholders.
The 1,500 V boundary in IEC 60269-6 is a standards-scope statement, not a VIOX product rating. The current VIOX PV DC Fuse family page states 1,000 V DC. A project requiring another voltage or a named certification needs exact controlled product documentation rather than an inference from the standard title.
Installation rules also depend on the target market and project. Record the applicable code or design standard separately from the fuse-link product standard, holder evidence, module datasheet, and assembly verification.
VIOX PV DC Fuse Product Family
VIOX Solar currently presents two DIN-rail PV DC fuse platforms. The values below are product-family orientation data from the current Payload product record; the controlled datasheet and approved quotation define the supplied configuration.
| VIOX platform | Fuse-link format | Published family boundary | Product route |
|---|---|---|---|
| RT18-32 / VOPV-32 | 10 × 38 mm | Part of the 1–50 A, model-dependent family at 1,000 V DC | Review RT18-32 / VOPV-32 |
| RT18-63 / VOPV-63 | 14 × 51 mm | Part of the 1–50 A, model-dependent family at 1,000 V DC | Review RT18-63 / VOPV-63 |
Both platforms are presented within the VIOX PV DC Fuse product family, which lists TH35 / 35 mm DIN-rail mounting. Do not infer a specific breaking capacity, certification, curve, or model current from this overview; request the exact controlled reference for the required configuration.
Choose Your Next DC Fuse Resource
Use the next page that matches the work in front of you:
- For the complete multi-device architecture, start with solar DC circuit-protection selection.
- For the enclosure and combining boundary, review what a PV combiner box does and how to select a PV combiner box.
- For resettable DC overcurrent protection, use the DC MCB Guide.
- For available VIOX fuse formats and model routes, use the PV DC Fuse product family.
For model confirmation, send the project maximum DC voltage, exact module datasheet, string arrangement, current inputs, required fuse-link format, holder and enclosure conditions, target market, and requested documentation to sales@vioxsolar.com.
