Solar DC protection should be selected from the circuit conditions—not from the system voltage printed on a product label. Start with the PV module data, inverter input architecture, number of parallel strings, expected environmental conditions, and destination-market rules. Then assign each required function to a specific circuit location before comparing device ratings.
The practical output is a device-location schedule: what must be protected or isolated, where the function belongs, which electrical ratings apply, and what evidence must accompany the selected device.
This guide supports preliminary design and procurement. Final calculations, coordination, installation, and approval must be completed by qualified personnel using the applicable edition of local regulations and project documents.
1. Freeze the system architecture first
A protective device cannot be evaluated correctly without knowing the circuit around it. Begin with the approved or proposed single-line diagram and mark these boundaries:
- Each PV string and any group of parallel strings
- Each inverter MPPT or DC input
- Any array or sub-array combining point
- Long DC cable runs and building entry points
- DC/DC converters, optimizers, or rapid-shutdown equipment
- Battery-connected DC circuits, if present
- Accessible isolation points required for operation or maintenance
Do not assume that all strings should be combined into one output. Separate MPPT inputs may need electrically distinct groups. Some inverters already incorporate switching, surge protection, or string inputs; other architectures place those functions in an external PV combiner box.
IEC 62548-1 covers PV-array design requirements including DC wiring, electrical protection, switching, and earthing provisions. Its scope helps define the array-side design boundary, but the applicable edition and local adoption still need to be confirmed for the project.
2. Build the source-data worksheet
Use current, controlled documents. A copied value from an old quotation is not a reliable design input.
| Input | Source | Why it matters |
|---|---|---|
| Module open-circuit voltage (Voc) | Module datasheet | Starting point for maximum circuit voltage |
| Module Voc temperature coefficient | Module datasheet | Used with the project's minimum cell-temperature method |
| Module short-circuit current (Isc) | Module datasheet | Starting point for conductor and protection analysis |
| Module maximum series-fuse rating | Module datasheet | Upper coordination boundary for string protection |
| Modules per string | String schedule | Determines string voltage |
| Parallel strings per circuit | Single-line diagram | Affects combined current and reverse-current exposure |
| Inverter maximum DC voltage | Inverter datasheet | Must not be exceeded by corrected array voltage |
| MPPT voltage/current limits | Inverter datasheet | Controls valid string grouping and input allocation |
| Inverter short-circuit contribution or backfeed data | Inverter documentation | Needed for fault and interruption review |
| Minimum/maximum design temperatures | Project environmental data | Affects voltage, current-carrying ability, and equipment suitability |
| Installation location | Layout and site data | Defines enclosure, UV, water, dust, condensation, altitude, and access needs |
| Destination market | Project specification | Determines adopted codes, standards, certification, and rapid-shutdown rules |
If any critical field is unknown, record it as unresolved. Do not conceal the gap by selecting a larger nominal rating.
3. Establish the maximum DC voltage
The highest PV voltage commonly occurs when modules are cold. Determine the corrected maximum circuit voltage using the project-approved method, the module Voc temperature behavior, the number of modules in series, and the applicable design rules.
Then check that the complete current path is suitable for that voltage—not only the breaker or fuse. The review can include:
- Inverter or power-conversion input
- Fuse link and fuse holder
- Circuit breaker pole arrangement
- Switch-disconnector or isolator
- SPD maximum continuous operating voltage for PV use
- Connectors, terminals, cable, glands, and internal wiring
- Combiner enclosure clearances and insulation design
A component marked “1000 V DC” is not automatically suitable for every 1000 V PV circuit. DC ratings can depend on pole configuration, polarity, utilization category, earthing arrangement, and the product standard under which the device was evaluated.
4. Determine current and reverse-current exposure
PV source circuits behave differently from conventional AC branch circuits. For each location, document:
- Expected operating current
- Module or string short-circuit current
- Number of parallel sources able to feed a fault
- Possible contribution from the inverter, converter, or battery
- Conductor current-carrying capacity after installation corrections
- Maximum current allowed by terminals, connectors, and other components
The need for string overcurrent protection depends on the potential fault current and the module's permitted reverse-current or maximum series-fuse boundary. It is not determined by string count alone. The applicable PV-array design rules must be used to decide whether protection is required and which conductors or poles must be protected.
Where PV fuse links are selected, verify the intended photovoltaic fuse class and the complete fuse system—not only the ampere value. IEC 60269-6 addresses supplementary requirements for fuse-links used to protect solar PV systems. The holder, temperature conditions, time-current behavior, breaking capacity, and coordination with the module and conductor all remain part of the selection.

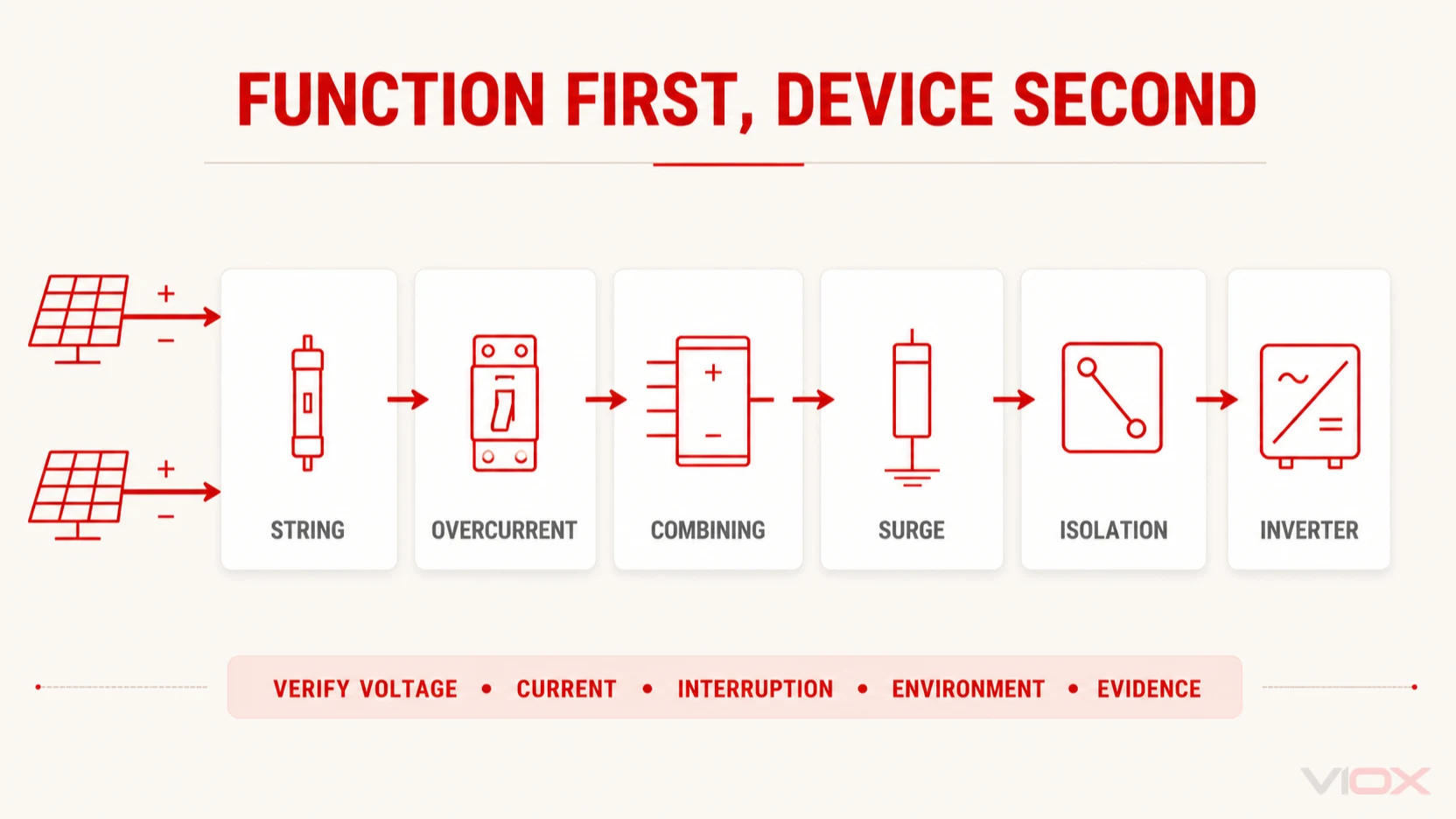

5. Assign one clear function to each device
Protection designs become confusing when device names are treated as interchangeable. Define the required function first.
| Function | Typical device family | Key verification questions |
|---|---|---|
| String overcurrent protection | PV DC fuse or suitable DC protective device | Is protection required? Is it coordinated with module reverse current, conductor, holder, and fault level? |
| Overload/short-circuit protection and switching | DC circuit breaker | Are DC voltage, poles, polarity, breaking capacity, trip behavior, and isolation suitability documented? |
| Surge limitation | PV DC SPD | Is it intended for PV DC? Are Ucpv, protection mode, Type, In/Imax or Iimp, Up, backup protection, and earthing path suitable? |
| Operational or maintenance isolation | DC isolator switch | Is the utilization category suitable for the load? Are all required live conductors switched? Is the location accessible and identifiable? |
| String combining and enclosure | PV combiner box | Does the box preserve MPPT groups and integrate the required protection, isolation, terminals, and environment rating? |
| Module-level or array-level shutdown | Rapid shutdown device | Is it required in the destination market? What initiation, controlled-conductor, voltage, timing, and compatibility rules apply? |
A circuit breaker may provide both protection and switching, but it should only be called an isolating device when that function is explicitly supported by its standard, markings, and documentation. Likewise, an isolator is not automatically an overcurrent protective device.

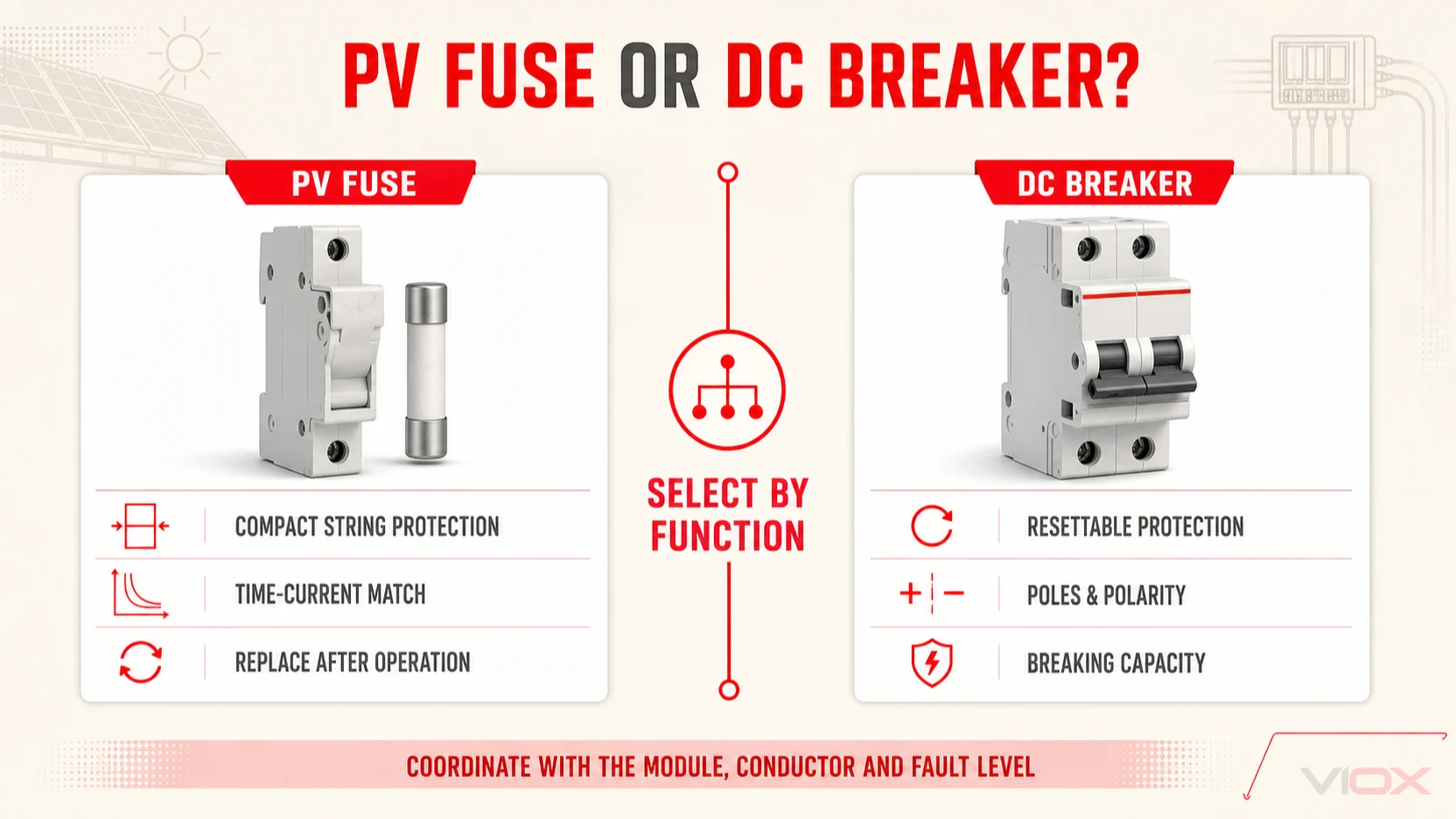

6. Choose between a fuse and a DC circuit breaker
The correct question is not “Which is better?” It is “Which device can perform the required function at this location with documented coordination?”
A PV fuse is often considered when:
- Compact string-level protection is required
- A photovoltaic fuse class is specified
- The fuse characteristic can be coordinated with the module, conductor, holder, and prospective fault current
- Replacement after operation is acceptable and controlled
A DC circuit breaker is often considered when:
- Resettable overcurrent protection is required
- The breaker provides a suitable switching or isolation function
- Its DC voltage, pole arrangement, polarity conditions, breaking capacity, and trip characteristic fit the circuit
- The device can be coordinated with upstream and downstream protection
IEC 60947-2 covers circuit breakers within its scope, while IEC 60947-3 covers switches, disconnectors, switch-disconnectors, and fuse-combination units. Referencing one of these standards does not replace verification of the exact product rating and PV application.
7. Select the PV DC surge protection function
An SPD is selected from the lightning and surge-risk design, earthing arrangement, equipment withstand level, conductor routing, and applicable installation rules. Avoid selecting it from nominal array voltage alone.
At minimum, record:
- SPD type required by the risk and protection concept
- PV maximum continuous operating voltage (Ucpv)
- Protection modes and connection arrangement
- Nominal and maximum discharge-current ratings, or impulse-current rating where applicable
- Voltage protection level (Up)
- Short-circuit behavior and any required backup protection
- Status indication and optional remote signaling
- Lead routing and earthing requirements for the final installation design
IEC 61643-31 addresses requirements and test methods for SPDs intended for the DC side of photovoltaic installations. The project still needs an installation-level decision about SPD type, location, coordination, and local code requirements.
8. Verify isolation and shutdown boundaries
Isolation supports safe operation and maintenance; rapid shutdown addresses a separate, market-dependent function. Do not merge the two requirements in an RFQ.
For each isolating point, specify:
- Circuit and location
- Maximum voltage and current
- Required number of switched poles
- Load-breaking duty or utilization category
- Locking, position indication, and accessibility requirements
- Enclosure and environmental conditions
- Coordination with inverter-integrated switching
For rapid shutdown, identify the destination jurisdiction and exact governing requirement before selecting equipment. The initiation method, controlled conductor boundary, permitted voltage, time requirement, communication method, and equipment compatibility can be region-specific.
9. Check interruption, coordination, and the complete assembly
The device's interrupting or breaking capacity must be suitable for the prospective fault current at its installation point. A PV array may have limited source current, but a connected battery, converter, parallel array, or other source can materially change the available fault energy.
Coordination review should cover:
- Protective device versus conductor withstand
- String device versus module maximum series-fuse rating
- Upstream versus downstream selectivity where required
- SPD short-circuit behavior and backup protection
- Breaker or switch DC pole arrangement
- Fuse link and holder compatibility
- Terminal and connector current/temperature limits
- Enclosure thermal performance with all devices installed
The assembly matters. A list of individually rated components does not by itself prove the completed box meets the project requirement.
10. Include the environment and service conditions
Record whether equipment is indoors, outdoors, shaded, exposed to direct sun, installed at altitude, subject to condensation, salt, dust, vibration, or restricted ventilation. Confirm:
- Permitted ambient-temperature range and any derating
- Enclosure ingress-protection requirement
- UV and corrosion resistance where relevant
- Cable-entry direction and gland range
- Heat dissipation and spacing
- Mounting orientation and access
- Labels, circuit identification, and service clearances
An enclosure rating describes specific tested ingress conditions; it does not by itself establish suitability for every outdoor environment.
11. Example: turn project inputs into a preliminary schedule
Assume a project has multiple PV strings allocated across separate inverter MPPT inputs. The design team has supplied module and inverter datasheets, corrected maximum voltage, circuit-current results, a lightning/surge assessment, and the rooftop environmental specification.
The preliminary schedule should not jump directly to a product model. It should look like this:
| Location | Required function | Preliminary specification | Still to verify |
|---|---|---|---|
| Each protected string | Overcurrent protection | PV-rated fuse system or documented DC protective device, coordinated with module and conductor | Final rating, time-current coordination, holder temperature |
| Each MPPT group | Combining | Inputs and outputs matching the approved MPPT grouping | Internal conductor and terminal schedule |
| Array-side surge point | Surge limitation | PV DC SPD with project-defined Type, Ucpv, modes, discharge rating, and Up | Risk assessment, backup protection, lead arrangement |
| Combiner output | Switching/isolation | DC switch-disconnector or suitable breaker for corrected voltage/current and required poles | Utilization category and isolation documentation |
| Outdoor assembly | Environmental protection | Enclosure matched to ingress, UV, corrosion, temperature, and entry requirements | Thermal verification and mounting details |
| Required shutdown boundary | Rapid shutdown | Market-specific equipment architecture | Jurisdiction, inverter compatibility, initiation method |
This format exposes missing inputs before procurement and prevents a nominal-voltage match from being mistaken for a complete design.
12. Solar DC protection RFQ checklist
Send these items with an RFQ:
- Current module and inverter datasheets
- Approved or proposed single-line diagram
- String schedule: modules per string, parallel strings, and MPPT allocation
- Corrected maximum voltage calculation and design temperatures
- Circuit-current and reverse-current analysis
- Prospective fault-current information from every possible source
- Required fuse, breaker, SPD, isolation, and shutdown functions by location
- Cable sizes, entry ranges, and conductor material
- Enclosure, ambient, altitude, UV, corrosion, and mounting requirements
- Destination country and applicable code/standard editions
- Required drawings, test records, certificates, labels, and inspection documents
- Monitoring, auxiliary contacts, or remote-signaling requirements
VIOX can review the requested configuration across DC breakers, PV fuses, SPDs, isolators, combiner boxes, connectors, and rapid-shutdown devices. Send the source documents and unresolved fields to sales@vioxsolar.com; final approval remains with the project's qualified designer and authority having jurisdiction.
Frequently asked questions
Is system voltage enough to select a DC breaker?
No. Check corrected maximum voltage, pole arrangement, polarity conditions, rated current, breaking capacity, trip behavior, circuit conductors, environment, and the intended protection or isolation function.
Does every parallel PV string need a fuse?
Not automatically. The decision depends on possible reverse current, the number and arrangement of parallel sources, module limits, conductor protection, and applicable design rules.
Can an SPD replace overcurrent protection?
No. An SPD limits transient overvoltage. It does not perform the same function as a fuse or circuit breaker.
Is a DC isolator the same as a DC circuit breaker?
No. An isolator or switch-disconnector provides a switching/isolation function within its documented ratings. A circuit breaker provides overcurrent protection and may also be suitable for switching or isolation when explicitly rated for those functions.
Which standards should appear in the specification?
List the installation and product standards actually applicable to the destination market and design. For an IEC-oriented project, the review may include IEC 62548-1 and IEC 60364-7-712 at installation level, plus product-scope checks such as IEC 60269-6, IEC 60947-2, IEC 60947-3, and IEC 61643-31. Confirm current editions and local adoption.
