A DC isolator switch is a manually operated device that creates a defined disconnection point in a direct-current circuit. In solar photovoltaic systems, the term commonly refers to a DC-rated switch-disconnector: a device that can make and break current within its documented utilization category and also provide an isolation function. The name alone is not enough—its markings, ratings, wiring arrangement, and manufacturer instructions determine what the device may safely do.
This distinction matters because a PV array can remain a source of DC voltage whenever light reaches the modules. Moving one handle to OFF isolates only the conductors and equipment inside the switch's designed boundary; it does not prove that the entire PV installation is de-energized.
Safety boundary: This article explains functions and terminology, not an installation or live-switching procedure. PV DC work should be designed, installed, isolated, tested, and maintained by qualified personnel under the applicable rules and controlled product instructions.
DC isolator, disconnector, and switch-disconnector: what do the names mean?
In everyday solar language, DC isolator, DC disconnect, and DC isolator switch are often used for the same product class. Technical documentation can be more precise.
| Term | Core function | Important boundary |
|---|---|---|
| Disconnector or isolator | Provides isolation when open and used within its documented conditions | A pure disconnector is not automatically intended to make or break normal load current |
| Switch | Makes, carries, and breaks current under its specified operating conditions | It is not automatically suitable for isolation |
| Switch-disconnector | Combines a switching function with a disconnector's isolation function | Its DC utilization category, voltage, current, and circuit arrangement still control the permitted duty |
| DC isolator switch | Common market term, especially in solar PV | Verify whether the actual device is declared as a DC switch-disconnector rather than relying on the market name |
IEC 60947-3:2020 covers switches, disconnectors, switch-disconnectors, and fuse-combination units within its stated scope up to 1,500 V DC. A 2025 amendment is also available in the current consolidated edition. Citing that standard family describes a product scope; it does not prove that a particular device, rating, or installation is compliant.
For a specification, the useful question is therefore not simply “Is this an isolator?” It is: Which switching and isolation functions are declared for this exact product and circuit configuration?
Why DC switching needs a purpose-designed device
Alternating current passes through a natural current zero during every cycle. Direct current does not. When contacts open under DC load, an arc can persist unless the switching mechanism, contact separation, pole arrangement, and arc-control features are designed for the stated duty.
A purpose-designed DC switch-disconnector manages that event through a coordinated mechanism. Depending on the product, this may include fast stored-energy operation, multiple contacts in series, defined contact travel, arc chambers, magnetic influence, or a prescribed pole connection. Those details are product-specific; they should not be inferred from an AC switch that happens to carry a similar current number.
Three ratings that look similar can describe different limits:
- Rated operational voltage relates to the circuit and declared switching duty.
- Rated operational current is tied to the voltage, utilization category, pole arrangement, and operating conditions.
- Rated insulation voltage is an insulation-system reference and is not, by itself, permission to switch that voltage under load.
That is why a prominent “1,500 V” marking or catalog headline cannot replace the arrangement-specific operating table and wiring diagram.

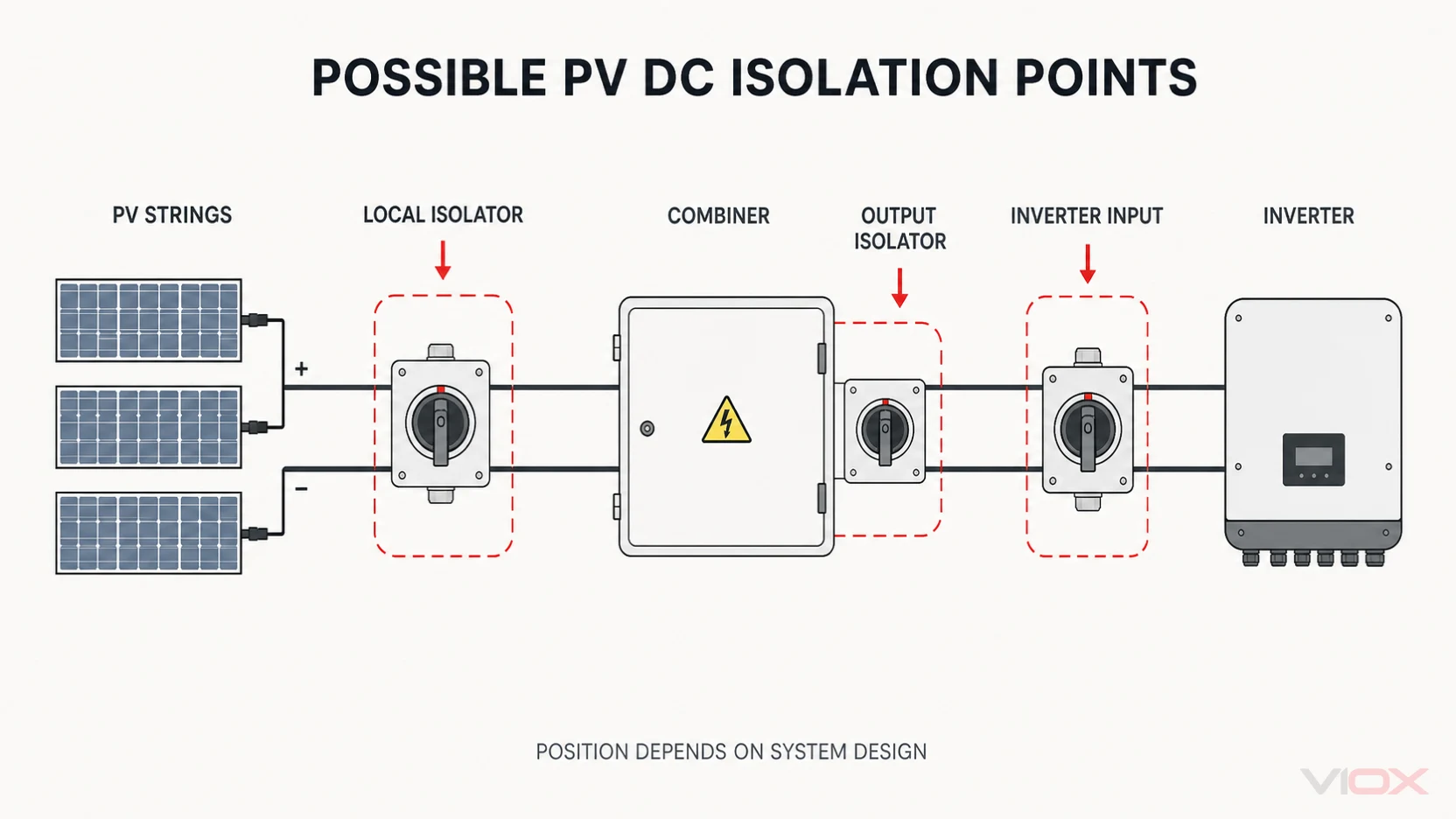

Where a DC isolator switch sits in a solar PV system
A DC isolation point defines a service or equipment boundary. Depending on the system architecture and applicable rules, a switch-disconnector may be associated with a string group, a PV combiner box, an inverter DC input, or DC distribution equipment.
A simplified power path may look like this:
PV strings → combining and protection → DC isolation point → inverter or other power-conversion equipment
This is a functional map, not a universal wiring diagram. Real projects can include multiple maximum-power-point-tracker inputs, distributed electronics, more than one source, battery circuits, integrated inverter disconnects, or market-specific shutdown equipment. The designer must identify every source and decide which conductors and equipment each isolation point actually separates.
The current IEC 62548-1 PV-array design standard includes DC wiring, electrical protection devices, switching, and earthing provisions within its scope. Its 2025 consolidated version includes revised isolation provisions. IEC 60364-7-712:2025 addresses PV electrical installations. The adopted edition, national implementation, project design, and authority requirements must all be confirmed rather than assumed from an international-standard title.
How a rotary DC switch-disconnector works
Many solar DC isolators use a rotary handle connected to a fast switching mechanism. The handle provides the user interface, while an internal stored-energy mechanism moves the contacts quickly rather than allowing contact speed to depend entirely on how slowly the operator turns the handle.
At a conceptual level, operation has four stages:
- ON state: the specified poles carry current through closed contacts.
- Operating input: the handle drives or releases the switching mechanism.
- Rapid contact movement: contacts separate, and the device controls the arc within its documented DC duty.
- OFF state: the contacts reach the declared open position and provide the intended isolation function.
The mechanism does not make every operating situation safe. A device can be incorrectly rated, incorrectly connected, exposed beyond its enclosure limits, or used in a circuit with energy and fault conditions outside its evidence. Isolation also needs verification under the site's safe-working procedure; handle position alone is not a test result.

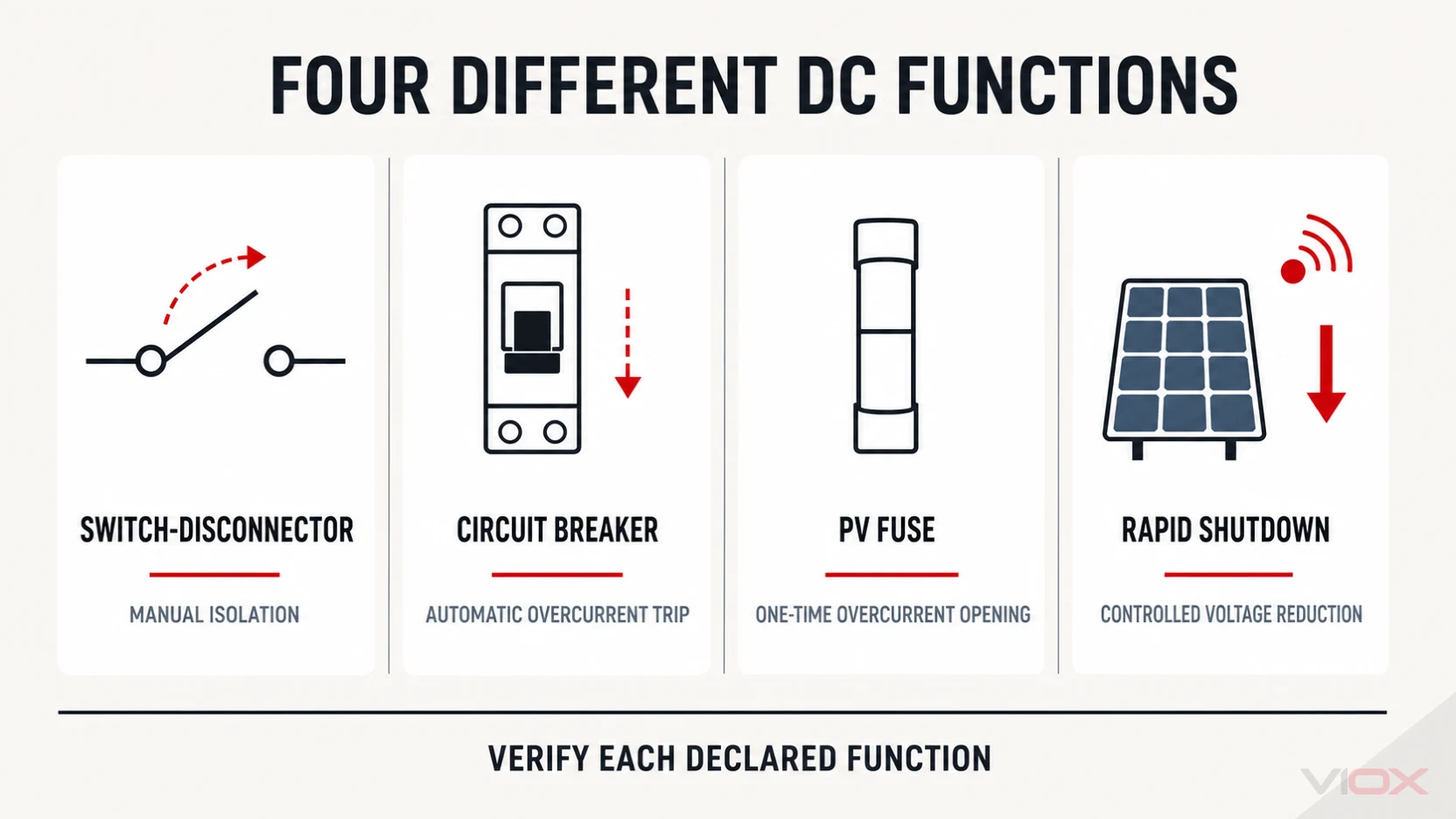

What a DC isolator does—and does not do
The clearest way to avoid specification errors is to assign one primary function to each device before comparing products.
| Device | Primary role | Typical action | What it does not automatically provide |
|---|---|---|---|
| DC switch-disconnector | Intentional switching and isolation within declared ratings | Manual operation | Automatic overload or short-circuit interruption |
| DC circuit breaker | Automatic overcurrent interruption within its trip and breaking ratings | Trips on defined overcurrent conditions; may also be manually operated | Isolation or load switching unless those functions are explicitly declared |
| PV fuse | One-time overcurrent interruption within its documented PV duty | Fuse element opens under qualifying overcurrent | Routine switching, reset, surge protection, or a visible service control |
| Rapid-shutdown equipment | Reduces voltage within a defined array boundary when initiated under the applicable system rules | Controlled system response | A universal substitute for mechanical isolation or overcurrent protection |
DC isolator vs DC circuit breaker
A DC isolator is selected primarily for intentional switching and isolation. A DC circuit breaker is selected primarily for automatic overcurrent protection and fault interruption. Some breakers are also marked and documented for switching or isolation, but that capability must be verified rather than assumed.
The reverse is equally important: a switch-disconnector may have a short-time withstand or conditional short-circuit rating, yet that does not turn it into an automatic protective device. It normally relies on coordinated upstream or downstream protection for fault clearing.
DC isolator vs PV fuse
A PV DC fuse responds once to qualifying overcurrent and must then be replaced. An isolator gives an operator a repeatable control point. One function does not imply the other, although both may appear in the same combiner box or DC assembly.
DC isolator vs rapid shutdown
Rapid shutdown is a system-level function defined by the applicable market rules and equipment architecture. It can reduce voltage within a specified boundary after initiation, but it should not be described as making every conductor in sunlight dead. A local mechanical isolator and a rapid-shutdown system can therefore serve different boundaries.
For a broader device-coordination workflow, use the solar DC circuit-protection guide.
Which specifications define the application boundary?
This Hub does not replace a project selection calculation, but it should make the evidence request more precise. At minimum, review these categories together:
| Evidence category | What to verify | Why it matters |
|---|---|---|
| Circuit voltage | Maximum corrected DC voltage and the exact product's operational rating | Low temperature can increase PV open-circuit voltage; insulation voltage alone is insufficient |
| Current and switching duty | Corrected operating current, declared utilization category, and expected operating duty | A thermal current number does not describe every load-breaking condition |
| Poles and circuit arrangement | Required live conductors, number of poles, series connections, polarity conditions, and approved diagram | Voltage and current ratings can change with the pole arrangement |
| Fault coordination | Withstand or conditional short-circuit data and the specified protective device | An isolator normally does not clear overcurrent automatically |
| Installation format | Panel, DIN-rail, enclosed, or door-coupled arrangement | The format changes access, enclosure integration, and operating interface |
| Environment | Ambient temperature, enclosure ingress protection, UV/corrosion conditions, pollution degree, and mounting constraints | Outdoor enclosure suitability cannot be inferred from the internal switch alone |
| Human interface | Position indication, lockability, accessibility, labeling, and operating instructions | A clear service boundary depends on both device evidence and installation design |
| Controlled documents | Datasheet, wiring diagram, declaration or certificate where required, installation instructions, and exact order code | Marketing descriptions do not control the final configuration |
These checks are interdependent. For example, an operating-current value may apply only at one voltage and one pole configuration. An IP rating may apply only to an enclosed version, not to a bare panel-mounted switch. A declaration for one order code should not be generalized to every member of a family.
Common specification mistakes
Treating the handle as proof of complete de-energization
OFF describes the switch state. It does not identify every possible source or prove absence of voltage. PV modules can remain energized in light, and parallel sources or stored energy may exist elsewhere in the system.
Using an AC isolator because the current rating looks adequate
DC arc interruption and pole configuration require DC-specific evidence. Comparable front-panel dimensions or current markings do not establish equivalent switching performance.
Reading a series maximum as a universal rating
Voltage, current, utilization category, poles, and wiring arrangement form one rating set. Separating the largest number from that set creates a misleading specification.
Assuming an isolator replaces protection
Isolation, overcurrent protection, surge protection, arc-fault response, and rapid shutdown are different functions. A project may combine several of them, but only where the system design and product documentation support the combination.
Treating one component standard as approval of the installation
IEC 60947-3 addresses equipment within its scope. PV array design and installation sit in other document layers, and destination markets can require national adoption, certification, or additional rules. Evidence must match the product, assembly, and installation layer being claimed.
VIOX VOD1 DC isolator switch family
The VIOX DC isolator switch family includes the VOD1 platform for photovoltaic circuits. The current family information lists panel mounting, 35 mm DIN-rail mounting, enclosed, and door-clutch formats, along with A2, A4, 4T, 4B, and 4S circuit arrangements.
Published family references include 1,500 V DC/25 A and 1,200 V DC/45 A operating combinations, but these values are not interchangeable. The applicable current depends on the operating voltage and pole arrangement. The enclosed configuration is described with IP66 protection; that statement should not be transferred to an unenclosed device or to the completed installation without the relevant evidence.
For an initial VOD1 inquiry, provide the circuit voltage and current basis, required pole arrangement, installation format, environmental conditions, destination market, and requested controlled documents. VIOX can then relate the requirement to a specific configuration and order code. Contact sales@vioxsolar.com for a documented product review.
A practical one-sentence specification boundary
A defensible starting statement is: Provide a DC switch-disconnector whose exact order code, operational voltage and current, utilization category, pole arrangement, fault coordination, enclosure, and documentation are suitable for the identified PV isolation boundary and destination market.
That sentence does not complete the design. It prevents the most common category error: buying a device by the words “DC isolator” and one headline rating while leaving the actual switching duty and circuit arrangement undefined.
