Photovoltaic module wiring
Connect photovoltaic module leads and DC string cables in field installations.
VIOX PV Connector Series
PV-T2 Solar Connector
Two-way photovoltaic branch connection with IP67 protection when correctly assembled and mated.
1000 V (TÜV) / 600 V (UL)Rated voltage
30 ASuitable current
IP67Protection degree
2-way branch pairBranch arrangement

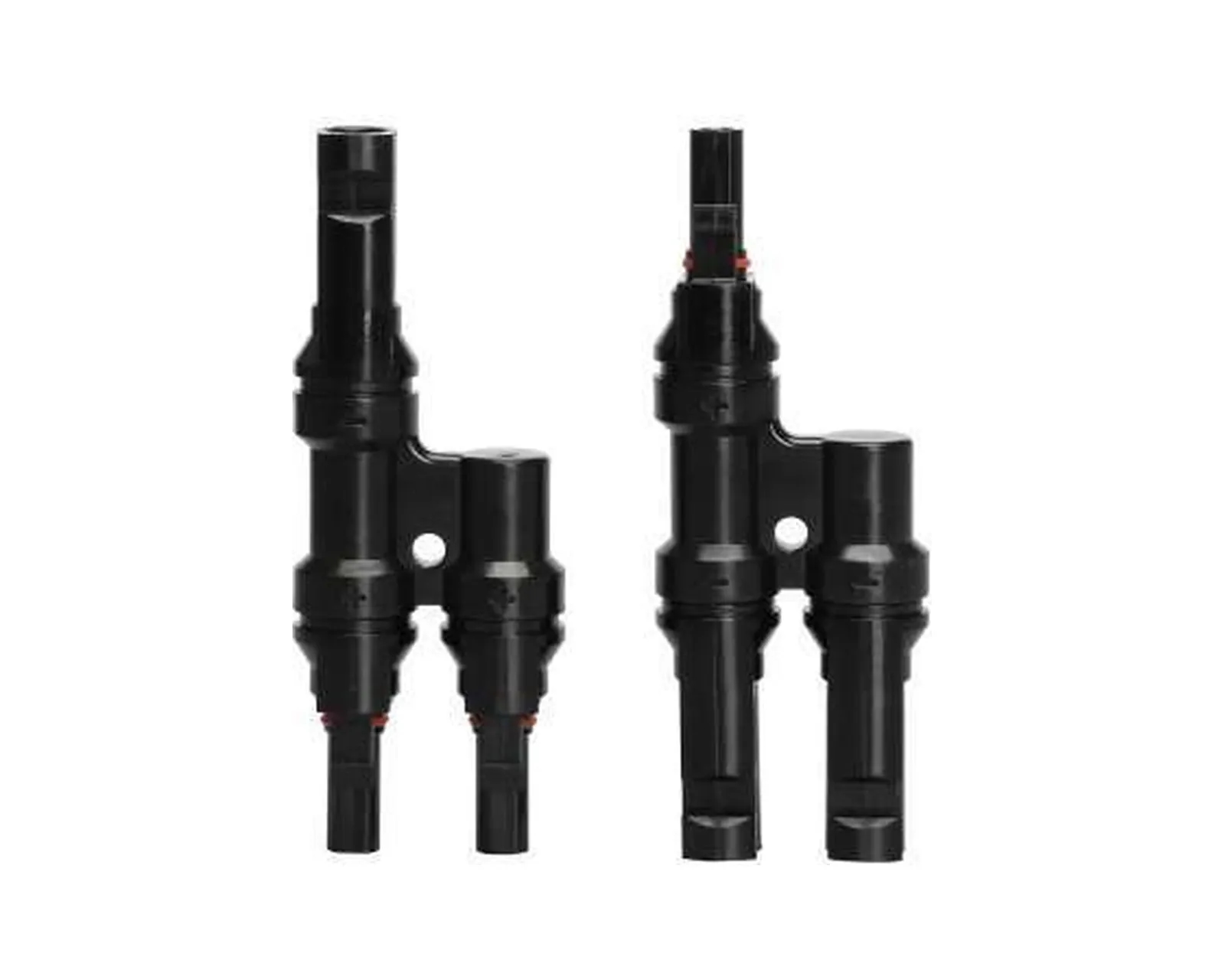

01 / PRODUCT VIEWPV-T2 is a 2-way branch pair for photovoltaic string branching. It uses Φ4 mm tin-plated copper contacts, PPO insulation and an IP67 construction for correctly assembled field connections.
02 / TECHNICAL DATA
PV-T2 technical data
Use these catalog values for initial selection. Confirm system voltage, current, conductor size, mating compatibility, crimp tooling and controlled documentation before ordering.
Electrical, mechanical and environmental specifications
Rated voltage1000 V (TÜV) / 600 V (UL)
Suitable current30 A
Protection degreeIP67
Branch arrangement2-way branch pair
Test voltage6 kV, 50 Hz, 1 min (TÜV)
Contact resistance<0.5 mΩ
Pin dimensionsΦ4 mm
Catalog dimensions107.5 × 41 mm
Contact materialTin-plated copper
Insulation materialPPO
PV-T2 dimension reference
Dimension drawing
Request the current dimension drawing for this model.
Configure PV-T2
04 / APPLICATIONS
Applications for PV-T2
02
PV string branching
Create a 2-way branch pair in the photovoltaic string layout.
03
Outdoor solar installations
Use in correctly assembled and mated residential, commercial and utility PV wiring.
05 / RESOURCES
PV-T2 controlled documents
Request documents matched to the final conductor, contact, tooling and destination market.
What is the rated voltage of PV-T2?
The catalog lists 1000 V (TÜV) / 600 V (UL). Confirm the corrected system voltage and controlled documentation before selection.
What current is listed for PV-T2?
The listed current is 30 A. Final current suitability depends on the conductor, contact, assembly and operating conditions.
What is the protection degree of PV-T2?
The catalog lists IP67 protection for the correctly assembled connector.
Can different connector brands be mated together?
Use only verified compatible mating pairs. Mixing unverified connector brands or systems can increase contact resistance and safety risk.
